Best Century UST1102 Alternative: Pureline PL1103

If your pool pump is struggling, humming without starting, leaking, or making excessive noise, it might be time to replace the motor — and the Pureline 1 HP Round Flange 56J Up Rate Motor (replaces Century’s UST1102) is a reliable and cost-effective option.

What This Motor Is

The Pureline 1 HP Round Flange 56J Up Rate Motor is an aftermarket replacement motor manufactured by Pureline, designed to fit many common pool pump applications that originally used a UST1102 motor configuration.

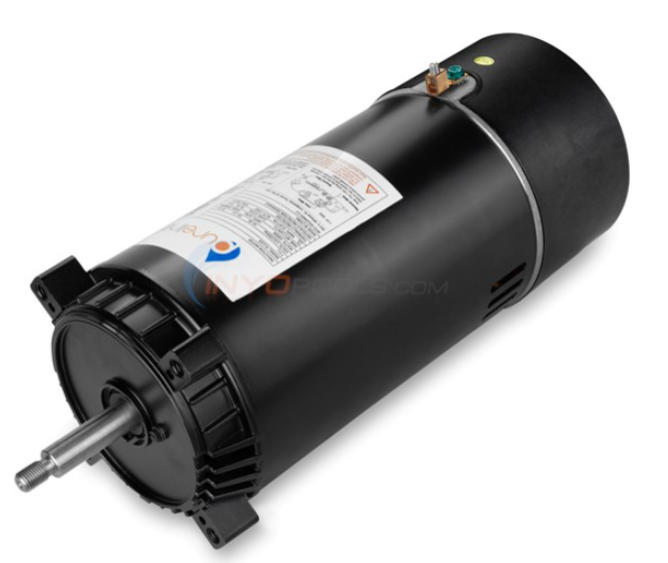

Image - Diy Pool Resources - Inyopools.com — **pureline Hp Round Flange j Up Rate Motor | Replaces Ust Pl**

It’s a single-speed, up-rated 1-horsepower motor built with a standard round flange and 56J frame, making it compatible with several popular pool pumps from brands like Hayward and Jacuzzi (as a reference, not OEM).

Key Specifications

Here’s what you need to know about this motor’s performance and design:

	Pureline PL1103	Century UST1102
Horsepower (HP)	1.0	1.0
Service Factor (SF)	1.0	1.1
Frame (FR)	56J	56J
Voltage (V)	115V / 230V	115V / 230V
Amps (A)	15.0A / 7.5A	15.0A / 7.5A
Warranty	1-Year	1-Year
Price	View Price	View Price

Compatibility — What It Replaces

This motor is designed to directly replace older UST1102-style motors without major modifications. The UST1102 nameplate designation refers to a common 1 HP, up-rated pool pump motor used on several pump brands and models.It also fits numerous Hayward® Super Pump®, Super II®, and Max-Flo®, as well as Jacuzzi® Magnum® pumps (compatibility for reference — pump model specifics should always be confirmed before purchase).

Installation Tips

One of the biggest concerns when replacing a pool motor is whether it will actually fit your existing setup. The PL1103 is designed with direct compatibility in mind, making it a straightforward replacement for motors like the Century UST1102. It features a similar frame size, mounting style, and overall configuration, so you’re not stuck trying to modify your pump or force parts to fit.

For most pool owners, this means the installation process is relatively simple. If you’re comfortable with basic DIY projects, you can usually swap out the motor without needing specialized tools or professional help. That kind of compatibility saves both time and frustration.

DIY Friendly: Installation is straightforward for those comfortable with basic electrical and mechanical tasks — most installs take about an hour.

Shaft Seal Kit: Replacing the shaft seal at the same time is strongly recommended, since old seals can leak and shorten motor life.

Voltage Selection: Ensure your power supply matches the selected voltage (115 V or 230 V).

Replacing the motor yourself can save on service fees and breathe new life into your pool circulation system.

A Cost-Effective Alternative

Replacing a pool motor can get expensive fast, especially if you’re looking at OEM options. One of the standout advantages of the Pureline PL1103 is that it offers a more budget-friendly alternative without sacrificing quality.

Pool owners often find that they can restore their system’s performance at a fraction of the cost of a full pump replacement. Instead of overhauling everything, you’re simply upgrading the part that actually failed. It’s a practical solution that keeps your pool running while keeping more money in your pocket.

So you’re not paying extra just for a brand name, you’re getting:

Equivalent performance
Easy installation
Solid reliability

All while keeping more money in your pocket.

Straightforward DIY Installation

If you like handling your own pool maintenance, the PL1103 is an especially appealing option. Its design makes it approachable for DIY installation, and it doesn’t require complicated adjustments to get up and running.

For many pool owners, this kind of straightforward replacement is ideal. You get the satisfaction of fixing the problem yourself, avoid service fees, and still end up with a reliable, high-performing motor.

Most pool owners can:
