The Pureline Prime VS Pump PL2705Â is the easiest way to upgrade your old single or dual-speed pool pump to an ultra-efficient variable speed. The Prime VS is not only a drop-in replacement for the Hayward pool pump brand but we’ll show you it is a good fit to replace the Jandy Stealth SHPF/SHPM and Stealth JHP/JHPU pump series (up to 1.65 Total Horsepower).
The Prime’s 1.65 HP VGreen ECM variable speed motor made by Century has the power to operate suction side cleaners, deck jets, and waterfalls; while also giving you the ability to run at ultra energy efficient low RPM modes for everyday filtering needs.
Jandy Stealth SHPF & SHPM Series Pump (2008-Current)
Jandy Stealth SHPM, Single Speed
| Model Number | Description | Can Prime VS Replace It? | Replacement VS Motor Kit Option |
|---|---|---|---|
| SHPM.75 | Jandy Stealth SHPM .75 HP Max Rated | Yes | MKITSHPVS16 |
| SHPM1.0 | Jandy Stealth SHPM 1 HP Max Rated | Yes | MKITSHPVS16 |
| SHPM1.5 | Jandy Stealth SHPM 1.5 HP Max Rated | Yes | MKITSHPVS16 |
| SHPM2.0 | Jandy Stealth SHPM 2 HP Max Rated | No | MKITSHPVS22 |
| SHPM2.5 | Jandy Stealth SHPM 2.5 HP Max Rated | No | MKITSHPVS22 |
Jandy Stealth SHPF, Single Speed
| Model Number | Description | Can Prime VS Replace It? | Replacement VS Motor Kit Option |
|---|---|---|---|
| SHPF.50 | Jandy Stealth SHPF .5 HP Full Rated | Yes | MKITSHPVS16 |
| SHPF.75 | Jandy Stealth SHPF .75 HP Full Rated | Yes | MKITSHPVS16 |
| SHPF1.0 | Jandy Stealth SHPF 1 HP Full Rated | Yes | MKITSHPVS16 |
| SHPF1.5 | Jandy Stealth SHPF 1.5 HP Full Rated | No | MKITSHPVS22 |
| SHPF2.0 | Jandy Stealth SHPF 2 HP Full Rated | No | N/A |
| SHPF3.0 | Jandy Stealth SHPF 3 HP Full Rated | No | N/A |
| SHPF5.0 | Jandy Stealth SHPF 5 HP Full Rated | No | N/A |
Jandy Stealth SHPF, Two Speed
| Model Number | Description | Can Prime VS Replace It? | Replacement VS Motor Kit Option |
|---|---|---|---|
| SHPF1.0-2 | Jandy Stealth SHPF 1 HP Full Rated Dual Speed | Yes | MKITSHPVS16 |
| SHPF1.5-2 | Jandy Stealth SHPF 1.5 HP Full Rated Dual Speed | No | MKITSHPVS22 |
| SHPF2.0-2 | Jandy Stealth SHPF 2 HP Full Rated Dual Speed | No | N/A |
Jandy Stealth SHPM, Two Speed
| Model Number | Description | Can Prime VS Replace It? | Replacement VS Motor Kit Option |
|---|---|---|---|
| SHPM1.5-2 | Jandy Stealth SHPM 1.5 HP Max Rated Dual Speed | Yes | MKITSHPVS16 |
| SHPM2.0-2 | Jandy Stealth SHPM 2 HP Max Rated Dual Speed | No | MKITSHPVS22 |
| SHPM2.5-2 | Jandy Stealth SHPM 2.5 HP Max Rated Dual Speed | No | MKITSHPVS22 |

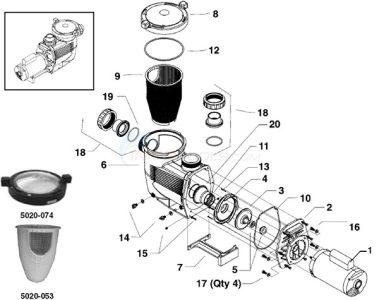

Jandy Stealth Original JHP & JHPU Series Pump (2002-2008)
Jandy Stealth Original JHPU Max Rate
| Model Number | Description | Can Prime VS Replace It? | Replacement VS Motor Kit Option |
|---|---|---|---|
| JHPU.75 | Jandy Stealth JHPU .75 HP Max Rated | Yes | N/A |
| JHPU1.0 | Jandy Stealth JHPU 1.0 HP Max Rated | Yes | N/A |
| JHPU1.5 | Jandy Stealth JHPU 1.5 HP Max Rated | Yes | N/A |
| JHPU2.0 | Jandy Stealth JHPU 2.0 HP Max Rated | No | N/A |
| JHPU2.5 | Jandy Stealth JHPU 2.5 HP Max Rated | No | N/A |
Jandy Stealth Original JHP Full Rate
| Model Number | Description | Can Prime VS Replace It? | Replacement VS Motor Kit Option |
|---|---|---|---|
| JHP.75 | Jandy Stealth JHP .75 HP Full Rated | Yes | N/A |
| JHP1.0 | Jandy Stealth JHP 1.0 HP Full Rated | Yes | N/A |
| JHP1.5 | Jandy Stealth JHP 1.5 HP Full Rated | Yes | N/A |
| JHP2.0 | Jandy Stealth JHP 2.0 HP Full Rated | No | N/A |
| JHP2.5 | Jandy Stealth JHP 2.5 HP Full Rated | No | N/A |
