Can the Pureline Prime VS Replace My Pentair Pool Pump?

The Pureline Prime VS Pump PL2705 is the easiest way to upgrade your old single or dual-speed pool pump to an ultra-efficient variable speed. The Prime VS is not only a drop-in replacement for the Sta-Rite pool pumps brand, but we’ll show you it is a good fit to replace the Pentair SuperFlo, Pentair Whisperflo, and Pentair Challenger pump series (up to 1.65 Total Horsepower).

The Prime’s 1.65 HP VGreen ECM variable speed motor made by Century has the power to operate suction side cleaners, deck jets, and waterfalls; while also giving you the ability to run at ultra energy efficient low RPM modes for everyday filtering needs.

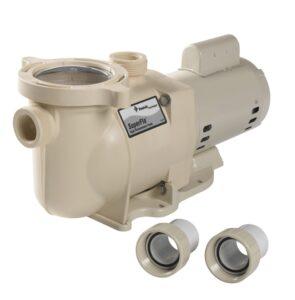

Pentair SuperFlo Single Speed

Model Number	Description	Can Prime VS Replace It?
340036	Pentair SuperFlo 1/2 HP Single Speed – SF-N1-1/2F	Yes
340037	Pentair SuperFlo 3/4 HP Single Speed – SF-N1-3/4A	Yes
340038	Pentair SuperFlo 1 HP Single Speed – SF-N1-1A	Yes
340039	Pentair SuperFlo 1.5 HP Single Speed – SF-N1-1-1/2A	Yes
340040	Pentair SuperFlo 2 HP Single Speed – SF-N1-2A	No
340041	Pentair SuperFlo 2.5 HP Single Speed – SF-N1-2-1/2A	No

Pentair SuperFlo Dual Speed

Model Number	Description	Can Prime VS Replace It?
340042	Pentair SuperFlo 1 HP Dual Speed Pump – SF-N2-1A	Yes
340043	Pentair SuperFlo 1.5 HP Dual Speed Pump – SF-N2-1-1/2A	Yes
340044	Pentair SuperFlo 2 HP Dual Speed Pump – SF-N2-2A	No

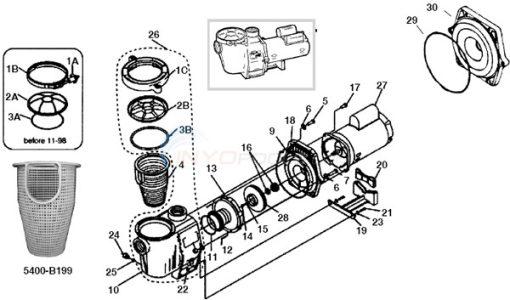

Pentair Whisperflo Standard Efficiency Up Rate, Single Speed

Model Number	Description	Can Prime VS Replace It?
011771	Pentair Whisperflo Standard Uprate .75 HP – WF-23	Yes
011772	Pentair Whisperflo Standard Uprate 1 HP – WF-24	Yes
011773	Pentair Whisperflo Standard Uprate 1.5 HP – WF-26	Yes
011774	Pentair Whisperflo Standard Uprate 2 HP – WF-28	No
011775	Pentair Whisperflo Standard Uprate 2.5 HP – WF-30	No

Pentair Whisperflo Standard Full Rate, Single Speed

Model Number	Description	Can Prime VS Replace It?
011578	Pentair Whisperflo Standard Full Rate .50 HP – WF-2	Yes
011579	Pentair Whisperflo Standard Full Rate .75 HP – WF-3	Yes
011580	Pentair Whisperflo Standard Full Rate 1 HP – WF-4	Yes
011581	Pentair Whisperflo Standard Full Rate 1.5 HP – WF-6	No
011582	Pentair Whisperflo Standard Full Rate 2 HP – WF-8	No
011583	Pentair Whisperflo Standard Full Rate 3 HP – WF-12	No

Pentair Whisperflo Energy Efficient Up Rate, Single Speed

Model Number	Description	Can Prime VS Replace It?
011516	Pentair Whsperflo EE Uprate 1 HP – WFE-24	Yes
011518	Pentair Whisperflo EE Uprate 1.5 HP – WFE-26	Yes
011519	Pentair Whisperflo EE Uprate 2 HP – WFE-28	No
011520	Pentair Whisperflo EE Uprate 2.5 HP – WFE-30	No

Pentair Whisperflo Energy Efficient Full Rate, Single Speed

Model Number	Description	Can Prime VS Replace It?
011511	Pentair Whisperflo EE Full Rate .50 HP – WFE-2	Yes
011512	Pentair Whisperflo EE Full Rate .75 HP – WFE-3	Yes
011513	Pentair Whisperflo EE Full Rate 1 HP – WFE-4	Yes
011514	Pentair Whisperflo EE Full Rate 1.5 HP – WFE-6	No
011515	Pentair Whisperflo EE Full Rate 2 HP – WFE-8	No
011516	Pentair Whisperflo EE Full Rate 3 HP – WFE-12	No

Pentair Whisperflo Dual Speed, Up Rate

Model Number	Description	Can Prime VS Replace It?
012485	Pentair Whisperflo Dual Speed Uprate .75 HP – WFDS-23	Yes
012518	Pentair Whisperflo Dual Speed Uprate 1 HP – WFDS-24	Yes
011524	Pentair Whisperflo Dual Speed Uprate 1.5 HP – WFDS-26	Yes
011525	Pentair Whisperflo Dual Speed Uprate 2 HP – WFDS-28	No

Pentair Whisperflo Dual Speed, Full Rate

Model Number	Description	Can Prime VS Replace It?
012530	Pentair Whisperflo Dual Speed Uprate .75 HP – WFDS-3	Yes
011486	Pentair Whisperflo Dual Speed Uprate 1 HP – WFDS-4	Yes
011522	Pentair Whisperflo Dual Speed Uprate 1.5 HP – WFDS-6	No
011523	Pentair Whisperflo Dual Speed Uprate 2 HP – WFDS-8	No

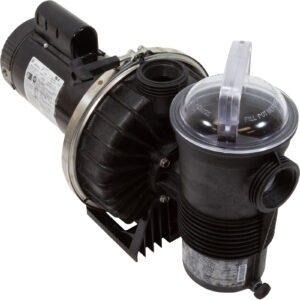

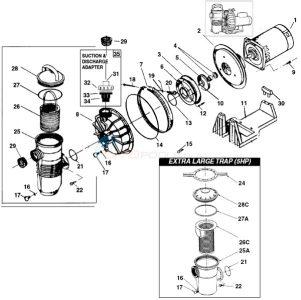

Pentair Challenger Standard Up Rate High Flow CF Series

Model Number	Description	Can Prime VS Replace It?
343232	Pentair Challenger .75 HP High Flow CF Series Up-Rated – CFII-N1-3/4A	Yes
343233	Pentair Challenger 1 HP High Flow CF Series Up-Rated – CFII-N1-1A	Yes
343234	Pentair Challenger 1.5 HP High Flow CF Series Up-Rated – CFII-N1-1-1/2A	Yes
343240	Pentair Challenger 2 HP High Flow CF Series Up-Rated – CFII-N1-2A	No
343229	Pentair Challenger 2.5 HP High Flow CF Series Up-Rated – CFII-N1-2-1/2A	No

Pentair Challenger EE Up Rate High Flow CF Series

Model Number	Description	Can Prime VS Replace It?
342235	Pentair Challenger 1 HP High Flow CF Series EE Up-Rated – CFII-N1-1FE	Yes
342236	Pentair Challenger 1.5 HP High Flow CF Series EE Up-Rated – CFII-N1-1-1/2FE	Yes
342238	Pentair Challenger 2 HP High Flow CF Series EE Up-Rated – CFII-N1-2FE	No

Pentair Challenger Standard Full Rate High Flow CF Series

Model Number	Description	Can Prime VS Replace It?
342232	Pentair Challenger .75 HP High Flow CF Series Full-Rated – CFII-N1-3/4A	Yes
342233	Pentair Challenger 1 HP High Flow CF Series Full-Rated – CFII-N1-1A	Yes
342234	Pentair Challenger 1.5 HP High Flow CF Series Full-Rated – CFII-N1-1-1/2A	No
342231	Pentair Challenger 2 HP High Flow CF Series Full-Rated – CFII-N1-2A	No
342248	Pentair Challenger 2.5 HP High Flow CF Series Full-Rated – CFII-N1-2-1/2A	No

Pentair Challenger Standard Up Rate High Pressure CH Series

Model Number	Description	Can Prime VS Replace It?
346203	Pentair Challenger .75 HP High Pressure CH Series Up-Rated – CHII-N1-3/4A	Yes
346204	Pentair Challenger 1 HP High Pressure CH Series Up-Rated – CHII-N1-1A	Yes
346206	Pentair Challenger 1.5 HP High Pressure CH Series Up-Rated – CHII-N1-1-1/2A	Yes
346201	Pentair Challenger 2 HP High Pressure CH Series Up-Rated – CHII-N1-2A	No
346249	Pentair Challenger 2.5 HP High Pressure CH Series Up-Rated – CHII-N1-2-1/2A	No

Pentair Challenger Standard Full Rate High Pressure CH Series

Model Number	Description	Can Prime VS Replace It?
345202	Pentair Challenger .5 HP High Pressure CH Series Full-Rated – CHII-N1-1/2F	Yes
345203	Pentair Challenger .75 HP High Pressure CH Series Full-Rated – CHII-N1-3/4F	Yes
345204	Pentair Challenger 1 HP High Pressure CH Series Full-Rated – CHII-N1-1F	Yes
345201	Pentair Challenger 1.5 HP High Pressure CH Series Full-Rated – CHII-N1-1-1/2F	No
345218	Pentair Challenger 2 HP High Pressure CH Series Full-Rated – CHII-N1-2F	No
345219	Pentair Challenger 2.5 HP High Pressure CH Series Full-Rated – CHII-N1-3F	No

Pentair Challenger Energy Efficient Full Rate High Pressure CH Series

Model Number	Description	Can Prime VS Replace It?
345212	Pentair Challenger .5 HP High Pressure CH Series EE Full-Rated – CHII-N1-1/2F	Yes
345213	Pentair Challenger .75 HP High Pressure CH Series EE Full-Rated – CHII-N1-3/4F	Yes
345205	Pentair Challenger 1 HP High Pressure CH Series EE Full-Rated – CHII-N1-1F	Yes
345206	Pentair Challenger 1.5 HP High Pressure CH Series EE Full-Rated – CHII-N1-1-1/2F	No
345208	Pentair Challenger 2 HP High Pressure CH Series EE Full-Rated – CHII-N1-2F	No
345209	Pentair Challenger 2.5 HP High Pressure CH Series EE Full-Rated – CHII-N1-3F	No
