When it comes time to replace your Hayward Super II, choosing the right alternative can make all the difference in performance, efficiency, and long-term value. While the Super II has long been a trusted workhorse for medium- to high-head pool systems, modern replacement pumps offer comparable power with improved energy efficiency, quieter operation, and more cost-effective pricing. Whether you’re dealing with a worn-out motor or simply looking to upgrade, selecting Pureline Prime Plus PL1702 ensures seamless installation without sacrificing flow rate or reliability. In this guide, we’ll explore what makes a pump a suitable substitute for the Super II and how to confidently choose the best option for your pool system.

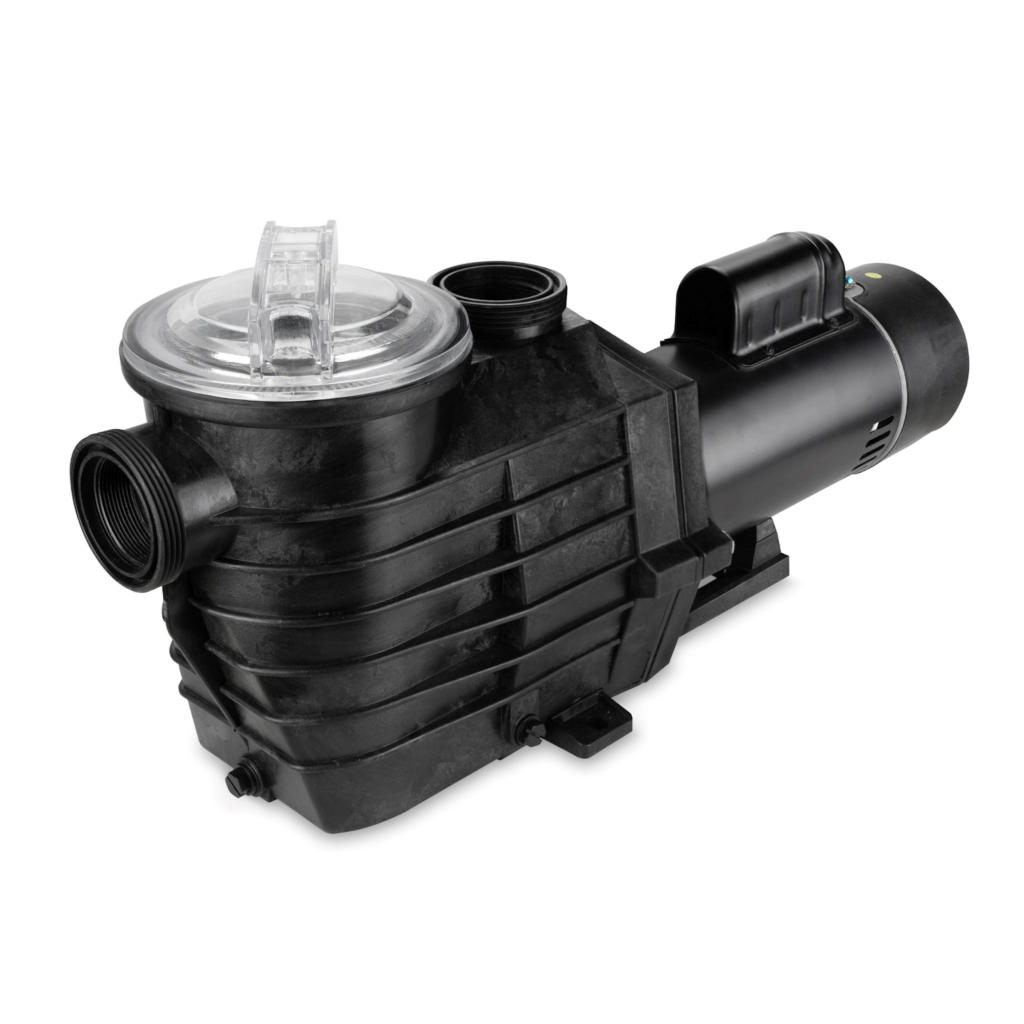

Pureline Prime Plus 2.0 HP Inground Pool Pump – Single Speed – 115/230V Hayward™ Super II® Drop-In Replacement – PL1702
- Direct fit for Hayward® Super II™ — no plumbing adjustments needed
- Expected Pump Housing Life: 10+ Years
- Suction lift up to 4.26 ft — ideal for most pool configurations
- Voltage selector switch for 115V or 230V setup
- UV- and chemical-resistant thermoplastic housing
- Mechanical shaft seal made from carborundum & graphite
- Stainless steel (304 grade) motor shaft for long service life
- Factory performance-tested before shipping
Why choose the Pureline PL1702 pool pump instead of a Hayward Super II pump?
The Pureline PL1702 offers comparable performance, value, and reliable circulation; at a budget-friendly cost compared to the Hayward Super II. That drop-in fit allows you to unscrew the unions of your old Super II, and slide in the Pureline Prime Plus without having to cut, adjust, or replace any plumbing.
The Pureline Prime Plus is a no muss, no fuss fit. But don’t just take my word for it, match your Hayward pump’s dimensions with those of the Prime Plus to see the hand-in-glove fit that makes installation a breeze.
Is the Pureline PL1702 suitable for all residential pool types compared to the Hayward Super II?
Yes. The Pureline PL1702 is just as versatile in its applications as the hayward Super II pool pump, as it can be used on all surface types, like vinyl, fiberglass, gunite, plaster, and Pebble Tec.
Pool surfaces generally do not limit your choices on the brand or model of pool pump you can install. if there is such a case of this limitation, I’ve yet to come across it.
Will the PL1702 plumb into my existing filter?
Absolutely, the Pureline Prime Plus uses standard 2-inch female threaded ports which allows you to use 2″ MPT, 2″ Socket Unions similar to those used on the Hayward Super II. These are standard plumbing unions. If your system or pool filter uses 1.5″ PVC plumbing like the Hayward Vari-Flo Valve – SP0714T, switch out the 2″ standard unions for a 2″ to 1.5″ reducer.
If you’re not sure of your filter’s or filter valve’s plumbing dimensions, these are some helpful guides:
- PVC Pool Pipe Dimensions
- How To Identify the Make and Model of My Pool Filter
- How to Identify Your Filter Valve’s Make and Model
Is the Pureline PL1702 as durable as a Hayward Super II pool pump?
The Pureline PL1702 is built with robust thermoplastic housing and corrosion-resistant materials, giving long-lasting durability comparable to the trusted Hayward Super II. The thermoplastic material is an almost standardized formulation between manufacturers. With proper maintenance and protection from the elements, you should easily get a decade or more of service out of your pool pump.
Does the Pureline PL1702 deliver the same flow rates as a Hayward Super II pump?
| Pureline Prime Plus – PL1702 | Hayward Super II – SP3015X20AZ | |
|---|---|---|
| Horsepower (HP) | 2.0 HP | 2.0 HP |
| Service Factor (SF) | 1.0 SF | 1.1 SF |
| Port Size | 2-in | 2-in |
| Voltage (V) | 115V / 230V | 115V / 230V |
| Amps (A) | 17.8A / 8.9A | 19.6A / 10.4A |
| Warranty | 1-Year | 1-Year |
| Price | View Price | View Price |
| Flow Rate @ 40 Ft of Head | 74 GPM | 112 GPM |
No, the Pureline Prime Plus PL1702 has a lower flow rate than a 2 HP Hayward Super II – SP3015X20AZ. The Prime Plus’ flow rate output is closer to that of the 1.5 HP Hayward Super II – SP3010X15AZ.
Although not a drop-in replacement for the Hayward Super Pump, the PL1702 is better suited to replace the 2 HP SP2615X20 Super Pump.
Are replacement parts available for the Pureline PL1702?
Yes. Pureline pumps like the PL1702 use standard industry-size parts and seals, making replacements easier and often less expensive than some proprietary Hayward Super II parts.
Does the Pureline PL1702 come with a strong warranty compared to Hayward Super II pumps?
Yes. The PL1702 includes a manufacturer-backed warranty that protects your investment, giving confidence similar to what you’d expect from established pool pump brands like Hayward.
