Identify My Above Ground Pool

Rob McLintock

October 22, 2024

26 Minute Read

Identifying the make and model of an above ground pool can be frustrating when looking for replacement parts. That frustration will lead to the question “How do I identify my above ground pool?” Previously, pool owners would email us pictures and we’d contact different manufacturers to help us ID the pool. In order to cut down on response time, we started to compile pictures of different models. Below is a list of some of the most common above ground pools we’ve identified over the years.

When scrolling through the pictures, don’t just look at the design of the pool wall. The pool walls are interchangeable with several models. Look closely at the top caps, top rails, and uprights. This is the key to figuring out the make and model of an above ground pool.

Don’t See Your Pool?

If your above ground pool is not pictured below, email us at agparts@inyopools.com or post to our public forum and we’ll identify your pool. Pictures of the outside pool wall, top cap, top rail, upright, and plates will be needed.

Without further ado, here is our evergrowing list of above ground pools.

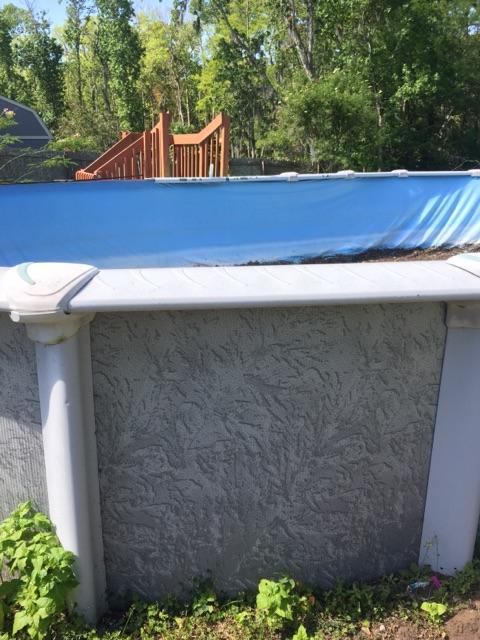

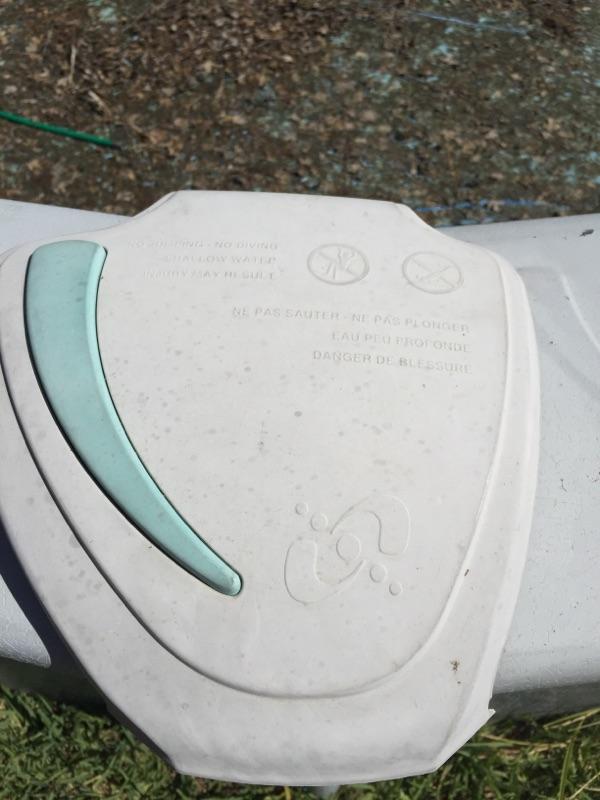

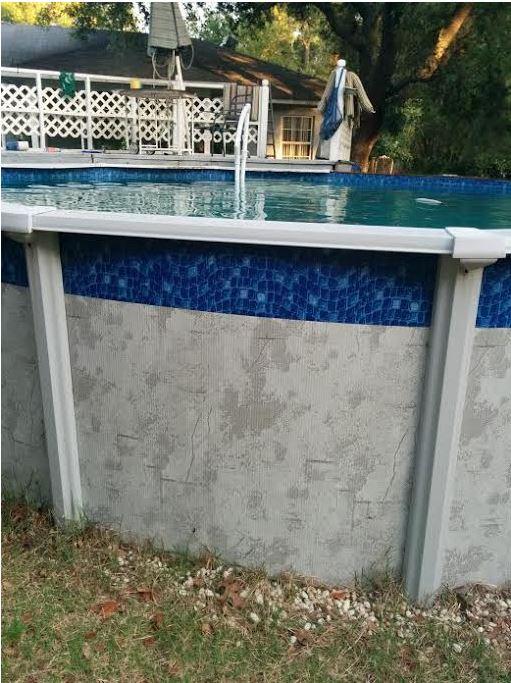

#1 Ponderosa

Manufacturer – Seaspray
Model – Ponderosa
Ponderosa Part Schematics – Round Pools with 52″ Wall, Buttress Oval Pools with 52″ Wall, Buttress Free Oval Pools with 52″ Wall
Top Cap – Part Number 27035
Top Cap Support (Round Pools & Curved Side of Ovals) – Part Number 27036
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 14205

#2 Sandy Point (Version 1)

Manufacturer – Artesian
Model – Sandy Point
Top Cap – Part Number 10146
Top Cap Support – Part Number 10159
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 35139

#3 Sandy Point (Version 2)

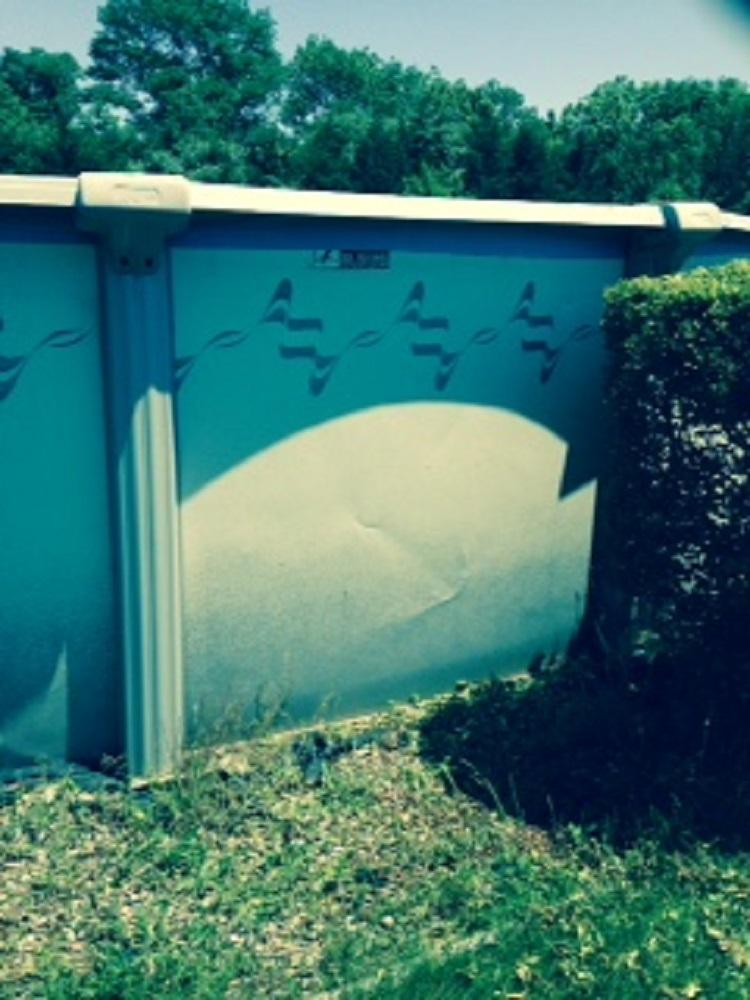

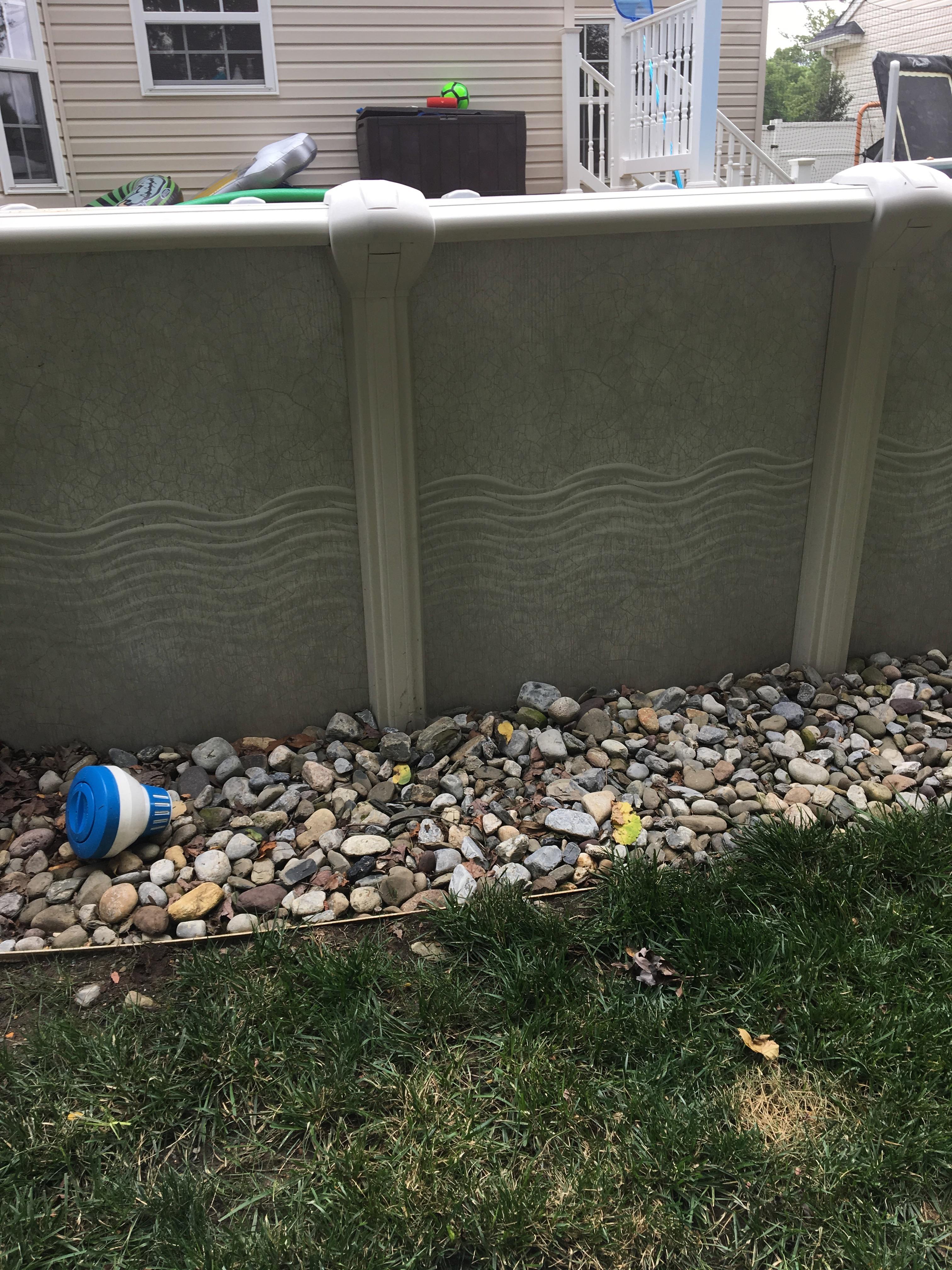

#4 Aegean II

Manufacturer – Seaspray
Model – Aegean II
Wall Pattern – Wave
Top Cap – Part Number 16263
Top Cap Support – Part Number 16262

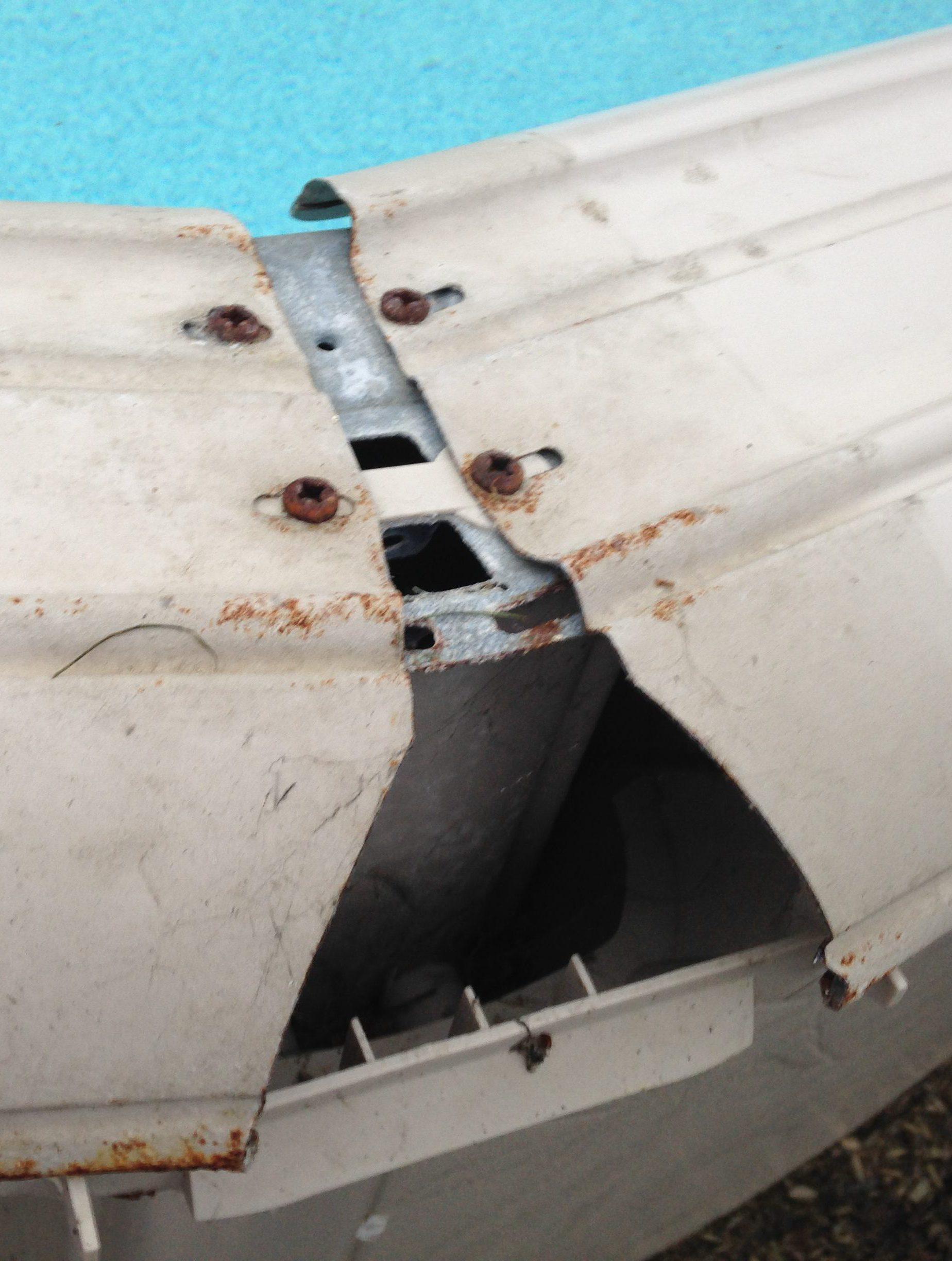

#5 Concorde Mist

Manufacturer – Atlantic
Model – Concorde Mist
Wall Pattern – Harvest
Top Cap – Part Number 1490479
Top Cap Support – Part Number 1490286
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 1320143

#6 Equinox

Garden Leisure Equinox

Manufacturer – Garden Leisure
Model – Equinox
Top Cap Large Half (Round Pools & Curved Side of Ovals) – Part Number 19300
Top Cap Small Half – Part Number 19302
Top Plate – Part Number 14693

#7 Generation

Manufacturer – Atlantic, Jacuzzi, Outback
Model – Generation
Generation Part Schematics – Round Pools with 52″ Wall, Oval Pools with 52″ Wall
Top Cap – Part Number 1490487
Top Cap Support – Part Number 1490277
Top Plate – Part Number 1320143

#8 Reprieve

Manufacturer – Wilbar
Model – Reprieve, Relaxing Meadow, Arcadia
Reprieve Part Schematics – Round Pools with 48″ Wall, Round Pools with 52″ Wall, Round Pools with 54″ Wall, Oval Pools with 48″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall
Top Cap – Part Number 21431
Top & Bottom Plate (Round Pools & Curved Side of Ovals) – Part Number 11595

#9 Estate

Manufacturer – Atlantic, Cantar
Model – Estate (Similar to Chateau but the Chateau has resin top rails & uprights)
Estate Part Schematics – Round Pools with 52″ Wall, Oval Pools with 52″ Wall
Top Cap – Part Number 1490592
Inner Connector – Part Number 1490497
Top Plate – Part Number 1320143

#10 Regatta

Manufacturer – Atlantic, Leslie’s
Model – Regatta, Pool Zone
Top Cap (Outer) – Part Number 1490190
Top Cap (Inner) – Part Number 1490189
Top Plate – Part Number 1320178

#11 Ultrada

Manufacturer – Vogue
Model – Ultrada
Top Cap – Part Number AR765-23100ABC
Top & Bottom Plate – Part Number 21116A
Bottom Boot – Part Number AR765-23300AC

#12 Zenith

Manufacturer – Vogue
Model – Zenith
Top Cap (Clay Color) – Part Number AR211-23120ABC
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 21120A

#13 Evasion & Escape

Manufacturer – Aqua Leader
Model – Evasion, Escape
Evasion Part Schematics – Round Pools with 52″ Wall
Escape Part Schematics – Round Pools with 54″ Wall
Top Cap (Gray) – Part Number 1030033200
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 1110053200

#14 Allegro

Manufacturer – Aqua Leader
Model – Allegro

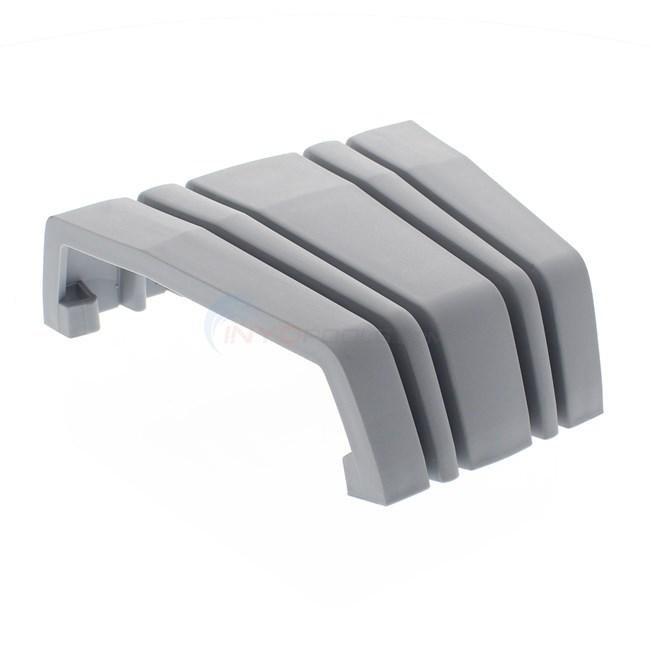

Top Cap – Part Number 1030013A00
Top Rail (Round Pools & Curved Side of Ovals) – Part Number 1010033A00

#15 Heritage

Manufacturer – Wilbar
Model – Heritage, Whispering Tree
Heritage Part Schematics – Steel Top Rail Round Pools with 52″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall, Buttress Oval Pools with 52″ Wall Resin Top Rail, Steel Upright Round Pools with 52″ Wall Resin Top Rail, Resin Upright Round Pools with 52″ Wall, Oval Pools with 52″ Wall, Buttress Oval Pools with 52″ Wall
Top Cap (Round Pools & Curved Side of Ovals) – Part Number 22732
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 22761

#16 J3000 & Sierra

Manufacturer – Atlantic, Leisure Bay
Model – J3000, Sierra
Top Cap (Gray) – Part Number 1490259
Top Cap Support (Gray) – Part Number 1490219
Top Plate – Part Number 1320143

#17 Morada

Manufacturer – Wilbar, Garden Leisure, Backyard Leisure
Model – Morada, Quest
Morada Part Schematics – Steel Top Rail Round Pools with 54″ Wall, Oval Pools with 54″ Wall Resin Top Rail
Round Pools with 52″ Wall, Round Pools with 54″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall
Top Cap (Champagne Color) – Part Number 19612
Top Cap Support (Round Pools & Curved Side of Ovals) – Part Number 19613

#18 Escalade

Manufacturer – Wilbar
Model – Escalade, Tahitian
Top Cap (Round Pools & Curved Side of Ovals) – Part Number 14440
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 14439
Notes – The Escalade was sold with different quantities of parts. Count uprights before ordering any rims or rails.

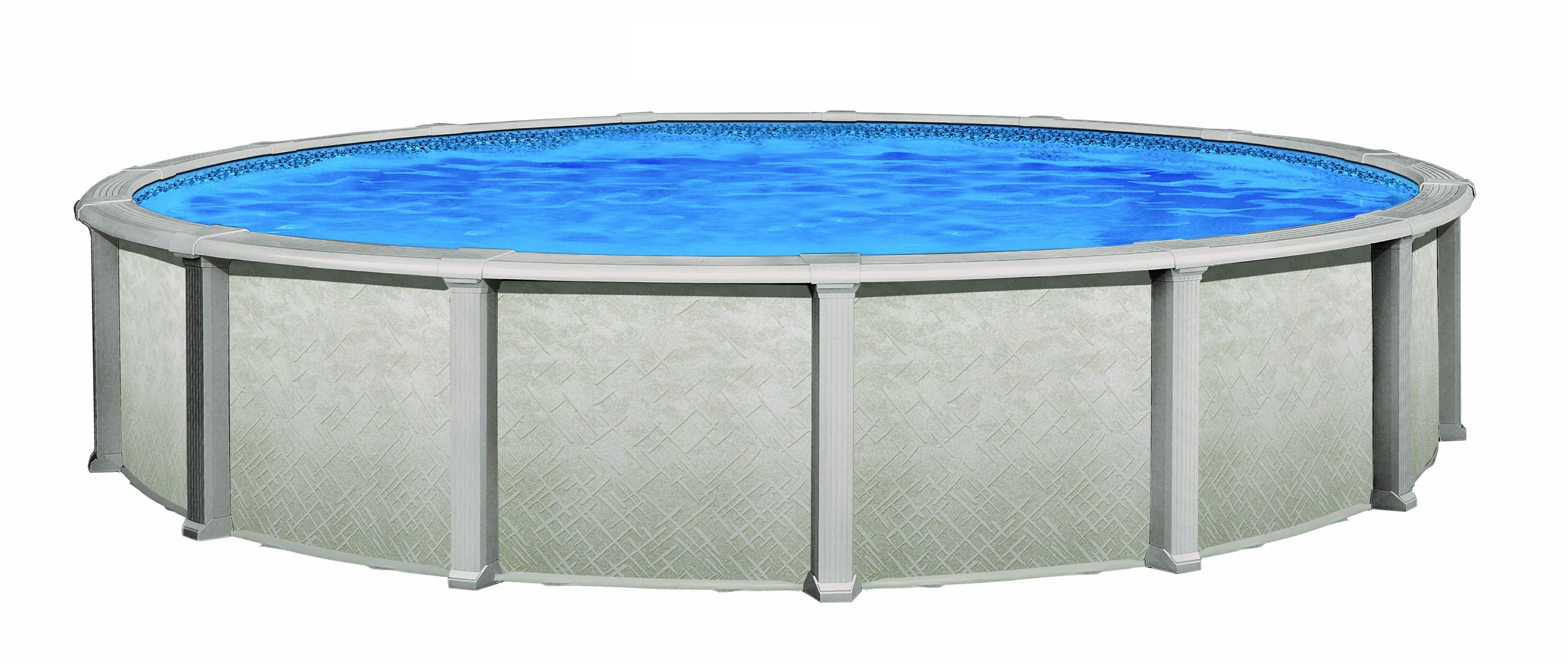

#19 Sentinelle

Manufacturer – Aqua Leader
Model – Sentinelle
Top Cap – Part Number 1030009E00
Top Rail (Round Pools & Curved Side of Ovals) – Part Number 10102010000

#20 Opera

Manufacturer – Wilbar
Model – Opera
Top Cap (Round Pools & Curved Side of Ovals) – Part Number 16301
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 16298

#21 Allure

Manufacturer – Seaspray, Wilbar
Model – Allure
Allure Part Schematics – Round Pools with 52″ Wall, Oval Pools with 52″ Wall
Top Cap – Part Number 18615
Top Cap Support (Round Pools & Curved Side of Ovals) – Part Number 18616
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 10135

#22 J1000

Manufacturer – Atlantic
Model – J1000
Top Cap – No Longer Available
Top Plate – Part Number 1320143

#23 Oracle

Manufacturer – Wilbar
Model – Oracle
Top Cap Inner – Part Number 26990
Top Cap Outer (Round Pools & Curved Side of Ovals) – Part Number 26991
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 29915

#24 High Sierra & Desert Shadow

Manufacturer – Seaspray
Model – High Sierra, Desert Shadow
Top Cap – Part Number 11495
Top Cap Support (Round Pools & Curved Side of Ovals) – Part Number 11497
Top Plate – Part Number 10134

#24 Intrigue

Manufacturer – Doughboy
Model – Intrigue
Website – www.doughboypools.com

#25 Lazer LX

Manufacturer – Vogue
Model – Lazer LX
Top Cap – Part Number TA770-23100ABC
Top Plate – Part Number 21116A

#26 Estate

Manufacturer – Atlantic, Cantar
Model – Estate
Top Cap Lower – Part Number 1490592
Top Cap Upper – Part Number 1490497
Top Plate – Part Number 1320143

#27 Matrix

Manufacturer – Sharkline, Wilbar
Model – Matrix, Odyssey
Matrix Part Schematics – Round Pools with 54″ Wall, Oval Pools with 54″ Wall
Top Cap – Part Number 22799

#28 Adobe

Manufacturer – Sharkline, Wilbar
Model – Adobe
Top Cap – Part Number 16263
Top Cap Support – Part Number 16262
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 10135

#29 Oyster Bay 7000

Manufacturer – Artesian
Model – Oyster Bay 7000
Top Cap – Part Number 10111
Top Cap Support – Part Number 10110
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 10842

#30 Oceanic

Manufacturer – Wilbar
Model – Oceanic (Similar to Legacy & Diamond Star but a different quantity of parts)
Oceanic Part Schematics – Steel Top Rail Round Pools with 54″ Wall, Oval Pools with 54″ Wall Resin Top Rail Round Pools with 54″ Wall, Oval Pools with 54″ Wall
Top Cap (Round Pools & Curved Side of Ovals) – Part Number 21378
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 21564
Bottom Boot – Part Number 21381

#31 Venture

Manufacturer – Wilbar
Model – Venture, Marina
Venture Part Schematics – Round Pools with 52″ Wall. Round Pools with 54″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall
Top Cap Outer (Round Pools & Curved Side of Ovals) – Part Number 34992
Top Cap Inner – Part Number 34994
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 20801

#32 Illusion

Manufacturer – Aqua Leader
Model – Illusion
Top Cap (2000-2005) – Part Number 1030033E00
Top Cap (1999 & Prior) – Part Number 1030033100

#33 J8000

Manufacturer – Atlantic, Outback
Model – J8000
Top Cap – Part Number 1490534
Top Plate – Part Number 1320143

#34 Prima

Manufacturer – Vogue, Aquasphere
Model – Prima, Gulfstream
Top Cap – Part Number GR726-27100ABC
Top Plate – Part Number 20666

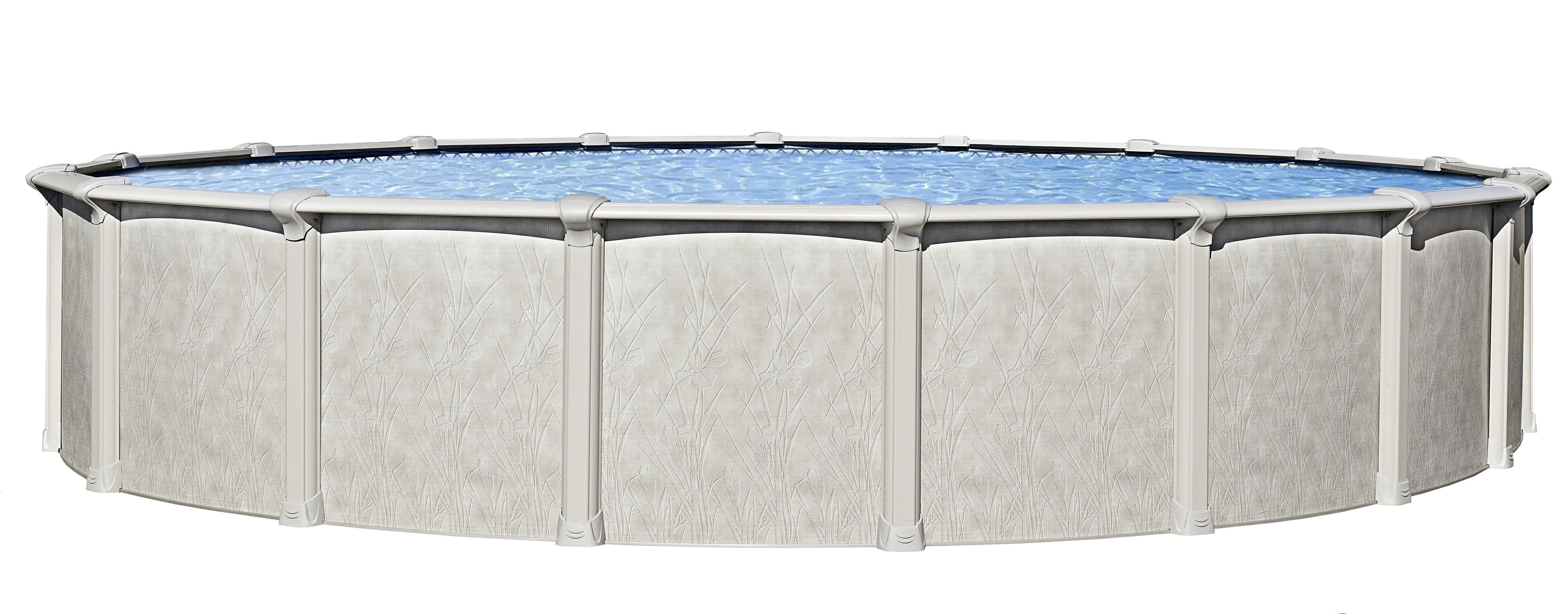

#35 Navigator

Manufacturer – Wilbar
Model – Navigator
Navigator Part Schematics – Round Pools with 54″ Wall, Oval Pools with 54″ Wall
Top Cap Outer Half – Part Number 16301
Top Cap Inner Half (Round Pools & Curved Side of Ovals) – Part Number 16300
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 16298

#36 Imperial

Manufacturer – Vogue, Outback, Haughs
Model – Imperial, Jubilee
Top Cap Upper – Part Number 1490109
Top Cap Lower – Part Number 1490519
Top Plate – Part Number 1320178

#37 Parisien

Manufacturer – Aqua Leader
Model – Parisien
Top Cap (Gray) – Part Number 1030033F00
Top Plate – Part Number 1040033F00

#38 Creation

Manufacturer – Aqua Leader
Model – Creation
Creation Part Schematics – Round Pools with 52″ Wall, Round Pools with 54″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall
Top Cap (Champagne Color) – Part Number 10300360919
Top Cap (Chrome Plated) – Part Number 10300365019

#39 Evolution

Manufacturer – Seaspray
Model – Evolution
Top Cap (Champagne Color) – Part Number 27047
Top Cap Support (Round Pools & Curved Side of Ovals) – Part Number 27048
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 17829

#40 Oasis

Manufacturer – Atlantic, Rec Warehouse
Model – Oasis
Top Cap – Part Number 1490565
Top Plate – Part Number 1320178

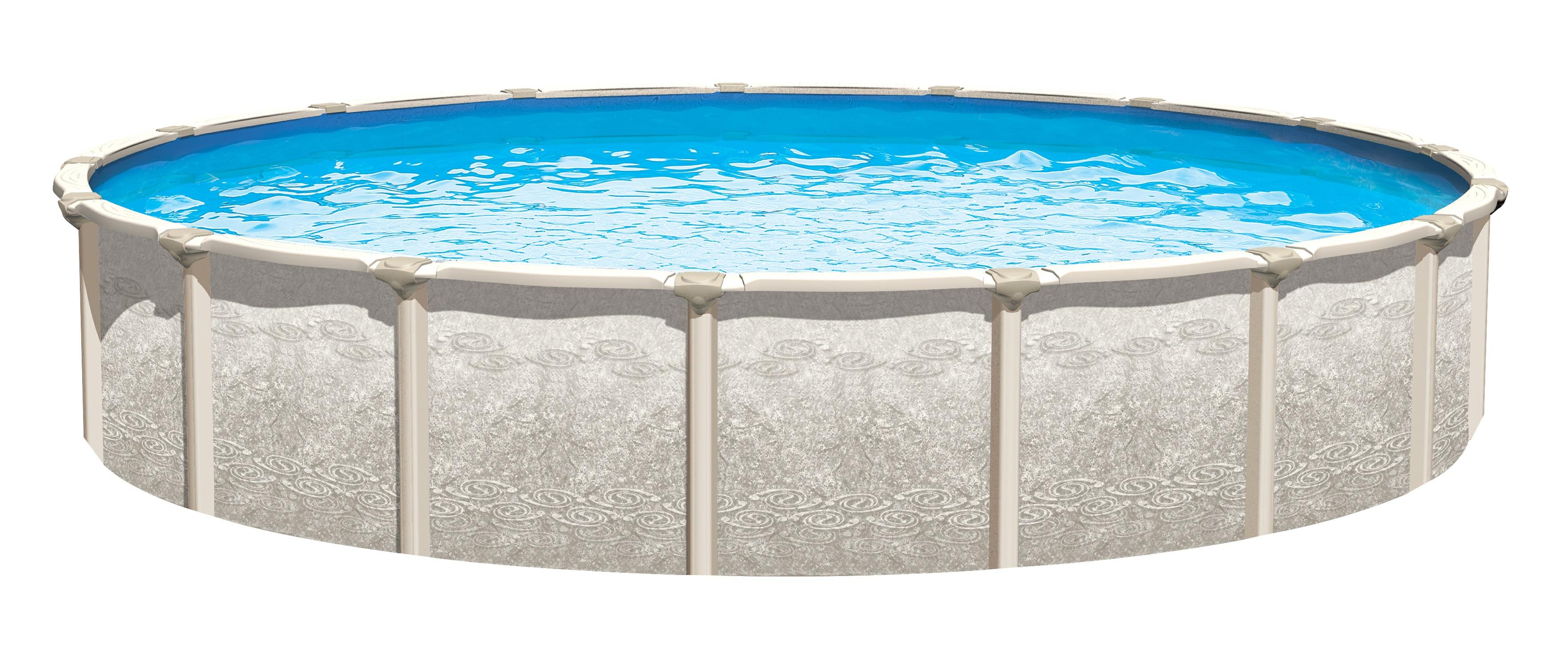

#41 Simbio

Manufacturer – Vogue
Model – Simbio
Simbio Part Schematics – Round Pools with 52″ Wall, Oval Pools with 52″ Wall
Top Cap – Part Number AR211-23120ABC
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 21120A

#42 Caribbean

Manufacturer – Leisure Bay
Model – Caribbean
Top Cap – Part Number 1490495 (No Longer Available)
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 1320102

#43 Podium

Manufacturer – Vogue
Model – Podium
Parts – No Longer Available

#44 Reflexion

Manufacturer – Aqua Leader
Model – Reflexion
Top Cap – Part Number 10607160000
Back Cover – Part Number 10302160000

#45 Blues

Manufacturer – Aqua Leader
Model – Blues
Blues Part Schematics – Round Pools with 52″ Wall, Round Pools with 54″, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall
Top Cap Outer (Round Pools & Curved Side of Ovals) – Part Number 1030009Q00
Top Cap Inner – Part Number 103009Q10
Upright Clip – Part Number 6ADP10900A00

#46 J6000

Manufacturer – Atlantic, Cantar
Model – J6000, Summer Fun
Top Cap – Part Number 1490526

#47 Vista

Manufacturer – Wilbar
Model – Vista, Family Ties
Vista Part Schematics – Round Pools with 52″ Wall, Oval Pools with 52″ Wall
Top Cap – Part Number PRM-3887-88
Top & Bottom Plate – Part Number PRM-9776-00

#48 Flair

Manufacturer – Vogue
Model – Flair
Parts – No Longer Available

#49 Southwind

Manufacturer – Wilbar
Model – Southwind
Top Cap – Part Number 19309
Top Cap Support – Part Number 19310
Top Plate – Part Number 15614

#50 Mission

Manufacturer – Vogue
Model – Mission
Top Cap – Part Number WG775-23100ABC
Top Plate – Part Number 21116A

#51 Forum

Manufacturer – Atlantic
Model – Forum
Top Cap – No Longer Available
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 203017

#52 Conquest

Manufacturer – Vogue
Model – Conquest
Top Cap – Part Number CF735-23335A
Top Cap Plug – Part Number SDT735-23335C
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 20668A

#53 Revelation

Manufacturer – Vogue
Model – Revelation
Top Ledge (Round Pools & Curved Side of Ovals) – Part Number CG761-001-R
Top Plate – Part Number CC761-20851

#54 Festiva

Manufacturer – Vogue
Model – Festiva
Top Cap – No longer Available
Top & Bottom Plate – Part Number 20666

#55 Flair

Manufacturer – Vogue
Model – Flair
Parts – No Longer Available

#56 Vogue Contempta

Manufacturer – Vogue
Model – Contempta
Parts – No Longer Available

#57 Opus

Manufacturer – Aqua Leader
Model – Opus
Opus Part Schematics – Round Pools with 52″ Wall
Top Cap – Part Number 1030007A00
Top Rail – Part Number 36887

#58 Asahi

Manufacturer – Asahi
Parts – www.asahiparts.com

#59 San Carlos

Manufacturer – Sharkline
Model – San Carlos
Top Cap – Part Number 12590
Top Cap Support – Part Number 12228

#60 Inspiration

Manufacturer – Vogue
Model – Inspiration
Top Cap (Round Pools & Curved Side of Ovals) – Part Number SD777-26100AB
Inspiration Part Schematics – Steel Top Rail Round Pools with 52″ Wall, Oval Pools with 52″ Wall, Resin Top Rail Round Pools with 52 Wall, Round Pools with 54″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall

#61 Esprit

Manufacturer – Atlantic
Model – Esprit
Top Cap – Part Number 1490837
Top Cap Support – Part Number 1490849

#62 Prestige

Manufacturer – Atlantic
Model – Prestige
Top Cap – No Longer Available
Top Plate – Part Number 1320178

#63 Meridien

Manufacturer – Aqua Leader
Model – Meridien

#64 Elegance

Manufacturer – Aqua Leader
Model – Elegance
Top Cap – Part Number 10338380000
Top Plate – Part Number 1110053200

#65 Muskin Pool

Manufacturer – Muskin
Model – Unknown
Parts – No Longer Available

#66 Escapade

Manufacturer – Muskin
Model – Escapade
Parts – No Longer Available

#67 Johnny Weissmuller Pool

Manufacturer – Johnny Weissmuller
Model – Unknown
Parts – www.teddybearpools.com

#68 AquaSports

Manufacturer – Buster Crabbe
Model – AquaSports
Parts – No Longer Available

#69 Asahi Pool

Manufacturer – Asahi
Parts – www.asahiparts.com

#70 Pacifica

Manufacturer – Cornelius
Model – Pacifica
Website – www.corneliuspools.com

#71 Alpha

Cornelius Alpha Above Ground Pool

Manufacturer – Cornelius
Model – Alpha
Top Plate – Part Number 6740

#72 Cypress

Manufacturer – Artesian
Model – Cypress
Top Cap – Part Number 10146
Top Cap Support – Part Number 10159
Top Plate (Round Pools & Curved Side of Ovals) – Part Number 35139

#73 Millenium Tuscan

Manufacturer – Cornelius
Model – Millenium Tuscan
Website – www.corneliuspools.com

#74 Swim’N Play Pool

Manufacturer – Swim’N Play
Model – Unknown
Parts – www.swimnplay.com

#75 XL 7000

Manufacturer – Swim’N Play
Model – XL 7000
Parts – www.swimnplay.com

#76 Emerald Isle

Manufacturer – Artesian
Model – Emerald Isle
Parts – No Longer Available

#77 Tavernier

Manufacturer – Swim’N Play
Model – Tavernier
Parts – www.swimnplay.com

#78 Diamond Crest

Manufacturer – Artesian
Model – Diamond Crest
Parts – No Longer Available

#79 Embassy Century

Manufacturer – Doughboy
Model – Embassy Century
Website – www.doughboypools.com

#80 Home & Roam Pool

Manufacturer – Home & Roam
Model – Unknown
Parts – No Longer Available

#81 Asahi Above Ground Pool

Manufacturer – Asahi
Model – Unknown
Parts – www.asahiparts.com

#82 Summerfield

Manufacturer – Wilbar
Model – Summerfield
Top Cap – Part Number 19309
Summerfield Part Schematics – Steel Top Rail Round Pools with 52″ Wall, Round Pools with 54″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″, Resin Top Rail Round Pools with 52″ Wall, Round Pools with 54″ Wall, Oval Pools with 52″ Wall, Oval Pools with 54″ Wall

#83 Ambassador

Manufacturer – Wilbar, Leslie’s
Model – Ambassador, Eden, Admiral, Pool Zone
Top Cap – Part Number 1490577
Top Plate – Part Number 1320178

#84 Sea Isle

Manufacturer – USA Industries
Model – Sea Isle
Parts – http://mwpools.com/Above-Ground-Pools-Parts-USA-Sea-Isle/

#85 Symphony Series

Manufacturer – Delair
Model – Symphony Series
Parts – www.teddybearpools.com

#86 Mirage

Manufacturer – Asahi
Model – Mirage
Parts – www.asahiparts.com

#87 Vantage & J5000

Manufacturer – Atlantic
Model – Vantage, J5000, Club Pro
Top Cap – Part Number 1490465
Top Cap Support – Part Number 1490464
J5000 Part Schematics – Round Pools with 52″ Wall, Oval Pools with 52″ Wall

#88 Concerto

Manufacturer – Aqua Leader
Model – Concerto
Top Cap – Part Number 103007B00
Top Rail (Round Pools & Curved Side of Ovals) – Part Number 1010002A00

#89 Deluxe 8000

Manufacturer – Swim’N Play
Model – Deluxe 8000
Parts – www.swimnplay.com

#90 Delair Pool

Manufacturer – Delair
Model – Unknown
Parts – www.teddybearpools.com

#91 Eclipse LX

Manufacturer – Wilbar
Model – Eclipse LX
Top Cap – Part Number 15445
Top Cap Support (Round Pools & Curved Side of Ovals) – Part Number 15446
Eclipse LX Part Schematics – Round Pools with 52″ Wall, Oval Pools with 52″ Wall

#92 Trevi Model 206

Manufacturer – Trevi
Model – 206
Parts – http://www.trevi.com/default.aspx

#93 Silver Sierra

Manufacturer – Lomart
Model – Silver Sierra
Website – http://lomart.com/pools/

Troubleshooting Topics

Controls / Automation

Chlorinators

Skimmers / Drains

Need Replacement Parts?

Swimming Pool Products

74 responses to “Identify My Above Ground Pool”

Mike Branyon

April 5, 2018

I have a Symphony Series steel pool, The Paradise 6” frame x 48” high. Do you have the top ledge for this model?

Reply
1. Rob McLintock

  April 6, 2018

  Hello Mike – Try http://www.teddybearpools.com. They carry parts for the Symphony Series pools. Good luck!

  Reply
Clyde McDonald

April 23, 2018

I bought used Doughboy,app15x 30 I have pic top cap assembly

Reply
1. Rob McLintock

  April 24, 2018

  Hello Clyde – If you are looking for Doughboy parts, we recommend trying http://www.doughboypools.com.

  Reply
John Severino

May 24, 2018

I have a 21′ round pool from Branch Brook Pools, purchased about 9 yrs ago.
Someone told me it’s most likely made by Namco.
The top rails are rusting out underneath and need replacing

Any ideas?

Reply
1. Rob McLintock

  May 24, 2018

  Hello John – Thank you for contacting Inyo. Namco was a retailer. They sold pools manufactured by other companies. Send pictures of the pool to upload@inyopools.com. Include a picture of the top cap, top rail, and outside pool wall (top to bottom).

  Reply
David Bruce Armstrong

May 24, 2018

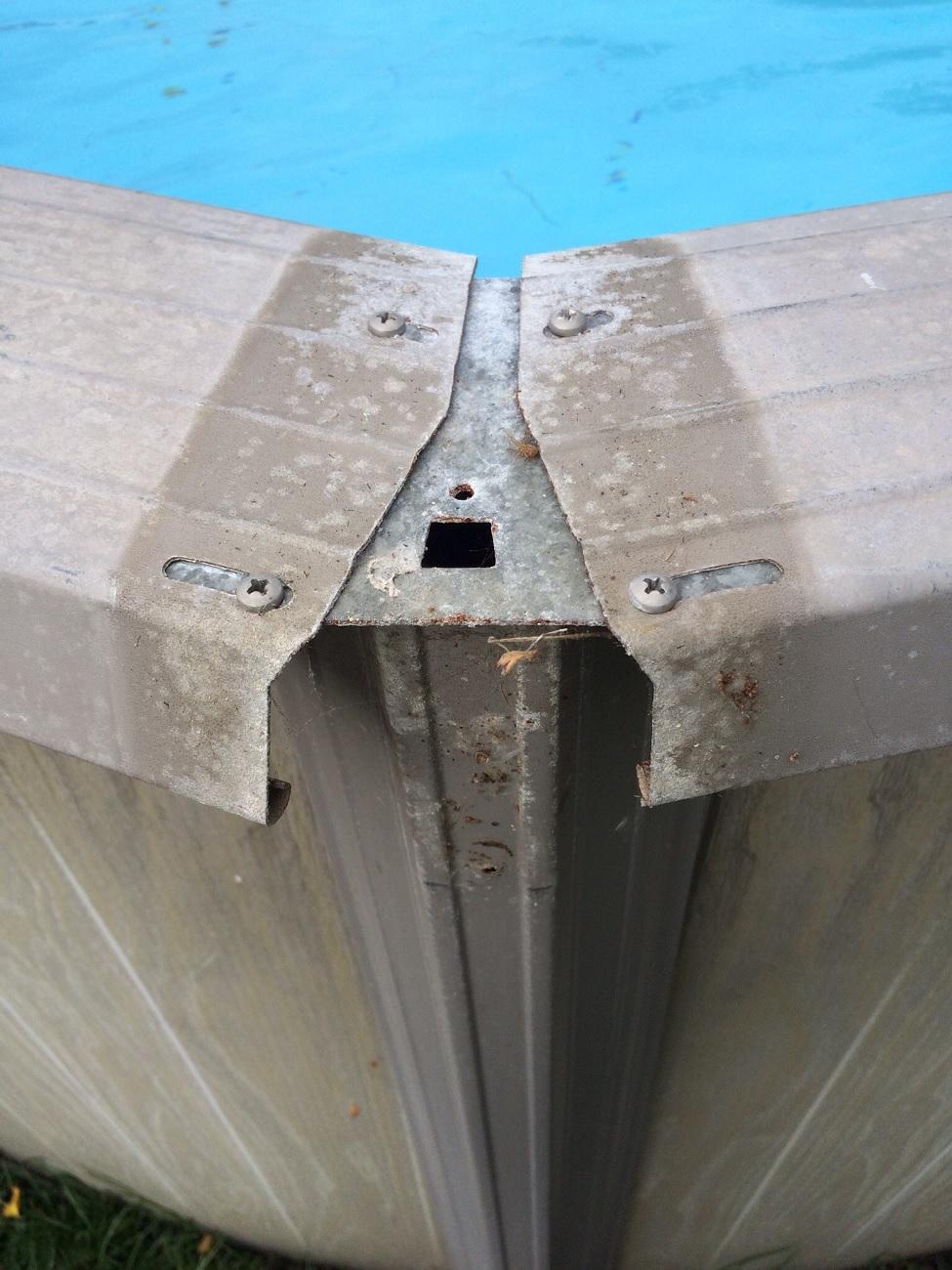

I purchased my house back in August 2006 and it came an above ground pool made by Clark. I am trying to find some top caps for it. I don’t know where to go to get them. Any help is appreciated.

Reply
1. Rob McLintock

  May 24, 2018

  Hello David – If you don’t recognize your top cap on any of the pools listed above, please email pictures to upload@inyopools.com. Include a picture of the top cap, top rail, and outside pool wall (top to bottom).

  Reply
Brenda

May 25, 2018

I need help finding out my pool manufacturers so that I can get proper parts to get it back up and going again. I’m not sure how this messaging thing works so if you can please try and help me identify my pool.

Reply
1. Rob McLintock

  May 26, 2018

  Hello Brenda – If you don’t recognize your pool in the images above, please email pictures to upload@inyopools.com. Include a picture of the top cap, top rail, and outside pool wall (top to bottom).

  Reply
Mari

May 26, 2018

Hello, I cant seem to find the manufacturer of a used pool. It needs bottom rims and plates. It is a round 27’×48″ thank you.

Reply
1. Rob McLintock

  May 29, 2018

  Hello Mari – If you don’t recognize your pool in the images listed above, please email pictures to upload@inyopools.com. Include a picture of the top cap, top rail, bottom plate, and outside pool wall (top to bottom).

  Reply
Al

June 1, 2018

Good morning, My name is Al. I have a Sharkline Silhouette pool 15′ x 30′ oval 52″ wall. Purchased this pool in 2002. I am in desperate need of some top rails which are rusted out and have been all over the internet and several stores trying to find them. The only thing I have found is that they no longer stock these top rails. I am hoping you can point me in the right direction.

Reply
1. Rob McLintock

  June 1, 2018

  Hello Al – We can special order replacement top rails for the Sharkline Silhouette. The lead time right now is about 4-5 weeks. The replacement rails will vary in color from the originals. The top rail for the curved side of the pool is part number 27981. The top rail for the straight side of the pool is part number 27985.

  Reply
Bob Smith

June 6, 2018

The house we bought (three years ago) has a pool. No idea what the make or model is, but it says “elite” at the bottom of the walls, it’s 21″, and has 17 uprights. It either needs many parts, or more likely, needs to be replaced. Problem is, there is a deck built completely around the pool and we don’t want to tear that down. So we need another pool that has 17 uprights, but I’m coming up empty handed. Suggestions?

Reply
1. Rob McLintock

  June 6, 2018

  Hello Bob – You may have an Artesian Monaco Elite. The 21′ pool should only have 15 uprights. Are you sure it’s not 24′? The 24′ size has 17 uprights. You can view the schematic on the Monaco Elite Parts Page.

  Reply
  1. Bob Smith

    June 6, 2018

    I believe you may be correct. The rail caps look identical, as do some of the other parts (can’t seem to find a picture of the wall though to be 100% certain). At any rate, buying the identical pool to is obviously not an option anymore. Same for most of the parts. I can’t afford to tear down the deck and have another one redesigned and built around a new pool. Any suggestions as to another 24′ pool I can buy that has 17 uprights and nearly the same dimensions as the Monaco Elite?

    Reply
    1. Rob McLintock

      June 7, 2018

      The wall pattern doesn’t matter when it comes to above ground pools. They use the same wall pattern on different pool models. Unfortunately, we do not have any 24′ models with 17 uprights. However, the Aqua Leader Escape uses 17 uprights. We do not sell that pool but you may be able to find a retailer who does.

      Reply
Joe G

June 26, 2018

I am looking for a top plate for my pool. Its an 8 inch resin part with the part number 2191.

Reply
1. Rob McLintock

  June 27, 2018

  Hello Joe – That looks like it might be a part number for an Asahi brand plate. We recommend trying AsahiParts.com.

  Reply
David Wallace

July 5, 2018

thank you for this site.Did not see my pool.Sent some pics.

Reply
1. Matthew Simmons

  July 6, 2018

  Ok, one of our a/g pool part reps will be in touch soon.

  Reply
JenandReno

July 29, 2018

Hello. Matching the images of the caps above and the original pool paperwork listing the manufacturer as Seaspray/Wilbar (lucky us that the previous home owners kept most of the papers) it looks like we have an Aegean II. Two of the uprights are completely rusted away from the ground and one of those two is slightly bent, the others have some rust at the ground level but are in otherwise good shape for now. We are thinking of replacing the two that are completely rusted but I have not been able to find anyone selling replacements. Otherwise are there uprights from another pool model that we could use?

Reply
1. Rob McLintock

  July 31, 2018

  Hello Jen and Reno – Thank you for contacting Inyo. How tall is your pool wall?

  Reply
  1. JenandReno

    August 13, 2018

    I couldn’t get a measurement of the outside because there is a significant amount of soil around the base (We have been working on removing the soil to replace it with sand). The measurement from the top of the curve on the inside of the pool to the top of the wall cap is 4 ft so I assume the wall itself is 47-48″ without the cap.

    Reply
    1. Rob McLintock

      August 15, 2018

      The manufacturer advised us that they didn’t have a 48″ Aegean II. Could you email us some pictures of your pool so we can confirm the model? You can email pictures to upload@inyopools.com. Please refer to the blog in the subject line or message.

      Reply
JenandReno

August 16, 2018

Yes. I also have another question as well. As you will see in the pictures I am sending above the ground line the pool is in pretty good shape (below the drain there is some rust but there is now silicone around the edges which seems to be keeping that area dry). However, the bottom is surrounded with soil and I can see the pool has a ring of rust which it appears to have been halted from moving upward with rust spray. Our plan was to remove the dirt and replace it with sand around the bottom but as I troweled down below the dirt line the rust began to flake away if I touched it. Since it is still intact I am wondering if removing the dirt will do more harm than good and I should just add sand and larger rocks over the top of the dirt. Thank you.

Reply
Emma

September 8, 2018

I read your blog and i really loved you blog

Reply
Angelique Swingle

March 17, 2019

I dont see you have Radiant Pools on this list. I have one and the kids will soon be out of the house and maybe time to sell this pool.

Reply
1. Rob McLintock

  March 17, 2019

  Unfortunately, we do not carry Radiant pool parts. We recommend trying RadiantPools.com.

  Reply
Kim Hall

March 24, 2019

I need help identifying my 24′ pool. It has ELITE written all the way around the bottom of the outside wall. I need to find some replacement top caps for it. I do have pics I can send. Please help. Thanks! 😊

Reply
1. Rob McLintock

  March 25, 2019

  Hello Kim – We’d be glad to assist you. Please email pictures of your top cap to agparts@inyopools.com.

  Reply
Katina Harrison

May 16, 2019

I have a paradise pool sku #003052. Trying to find the uprights for it

Reply
1. Rob McLintock

  May 16, 2019

  Several pools could have been sold under the Paradise name. Could you email some pictures of the pool to agparts@inyopools.com?

  Reply
Chuck

June 14, 2019

I have a 24’ round Home and Roam pool installed in 1992. I’m in need of some 7” top rails. I realize that H & R is out or business. Any suggestions? Thank you, Chuck

Reply
1. Rob McLintock

  June 14, 2019

  We can’t guarantee any of our current top rails will work. Feel free to look through our available top rails. They are sorted from shortest to longest. http://www.inyopools.com/parts_above_ground_pool_top_rails.aspx

  Reply
Joseph willis

June 19, 2019

I need parts for a 24×52 silverado.

Reply
1. Rob McLintock

  June 19, 2019

  Hello Joseph – The Silverado is a Delair pool. We do not carry Delair parts. We recommend trying http://www.teddybearpools.com.

  Reply
A.Paul

July 3, 2019

I am so glad I came across your website. We purchased a used pool and had no idea who the manufacturer was. I was able to determine who made our pool and get further information.

Reply
1. Rob McLintock

  July 3, 2019

  Thank you for the feedback! We’re glad we could help.

  Reply
DLOPEZ

August 31, 2019

I HAVE #84 SEA ISLE 15X21 WHERE CAN I GET A REPLACEMENT LINER,COVER AT?

Reply
1. Rob McLintock

  September 3, 2019

  A 15’x21′ pool size would require a custom liner. If you complete an above ground liner measuring form and email that to upload@inyopools.com, we can send you a quote. The closest cover we have for your pool is the PL9919. It’s designed for a 15’x26′ pool.

  Reply
Tammy

February 21, 2020

I am trying to find out what brand of pool we have. I don’t have the paper work anymore. It was purchased in 2002 or 2003.

Reply
1. Rob McLintock

  February 24, 2020

  Hello Tammy – Please send us a picture of the outside pool wall, top cap, top rail, and top plate. You can email the pictures to agparts@inyopools.com.

  Reply
Stu

April 19, 2020

Wow! Thank you for this site. Bought our house 5 years ago. Previous owner installed pools as a side business. We found ours to be “Frankenstein”: pump from one company, sand filter another, sump from a fourth. Pool itself was a take down and reinstall here. Even the pool tools they left were miscellaneous as was the pool chemicals. We got things figured out, I know water, due to my degree in agriculture irrigation, ( dealt with systems that can pump the contents of our pool in less than 2 minutes) but the brand of pool, had our local retailers guessing what brand.

It’s # 38, Evolution, 16 x 32, in brown/tan.

I am book marking your site.

Thank you!
Stu

Reply
1. Rob McLintock

  April 19, 2020

  That’s awesome, Stu!. Thank you for the feedback.

  Reply
Donna B.

May 12, 2020

Hello, we have a 21ft round Rio II and need to replace top plate and coopings. We had the pool installed six years ago and they have rusted. I don’t see a Rio II listed above, can you please send me in the directions to get these replacement parts? Thank you

Reply
Shelby MacArthut

May 19, 2020

I have the vogue resin pool. We are missing the clips that hold the legs to the top ledge.. any ideas where we can get them ?

Reply
1. Matthew Simmons

  October 7, 2020

  If you need help with identifying which Vogue you own or the parts that go with it, we request that you provide pictures.

  Excerpt from the beginning of the article:

  If your above ground pool is not pictured below, email us at agparts@inyopools.com or post to our public forum and we’ll identify your pool. Pictures of the outside pool wall, top cap, top rail, upright, and plates will be needed.

  Reply
Bill Lusk

May 29, 2020

I need the stabilizer rails for 18×33 Key West oval above pool. Also need some top plates. Can you help me.

Reply
1. Matthew Simmons

  October 7, 2020

  As we request in the article, please send in pictures of your pool so we may identify the pool. Regional dealers change pool names to fit their demographic, and customer base. So a pool called Key West in Wisconsin is a Morada in Georgia.

  Feel free to email us at agparts@inyopools.com

  Reply
JAIR DELGADO

June 12, 2020

i need a Oval above ground pool walls by Atlantic pool 15’*30′ 52′ can you help me .

Reply
1. Matthew Simmons

  September 9, 2020

  Unfortunately, we do not sell above ground pool replacement walls. They are usually only replaceable through the manufacturer under a warranty claim.

  Reply
Christine

August 15, 2020

Any Idea where I can find Buster Crabbe AquaSports Top Rails? Or something close to it…?

Reply
1. Matthew Simmons

  August 21, 2020

  Unfortunately, the Buster Crabbe brand has gone the way of the Esther Williams and Johnny Weissmuller pools, no one makes their replacements parts any longer. You may be able to find used parts online but they are few and far between.

  Reply
Edward miller

August 20, 2020

Looking for ledges and top plates for a 12x24oval 48”deep pool. Brand is the patriot

Reply
1. Edward miller

  August 20, 2020

  That wasn’t a match . I have a model # for the top plates . It’s t2980-xx

  Reply
Becky

February 18, 2021

I am needing the top rails and caps for a Nova by Garden Leisure pool. It’s a 24 round by 52”

Reply
Rglyer@msn.com

June 15, 2021

I have a doughboy I autumn breeze need part number 340 -2552 in Manuel top connector…

Reply
Shawn

July 4, 2021

Trying to identify the maker of my poll can anyone help

Reply
1. Matthew Simmons

  July 29, 2021

  Sure we can help.

  If you would like us to ID the pool. Please email the following pictures/information to agparts@inyopools.com: Size & approximate age of the pool Image of the pool wall. Image of the upright Image of the top rail connection to the upright. Name of the pool (if known). Again, email the pictures to agparts@inyopools.com and our a/g pools parts dept will contact you through a direct reply to your email.

  Reply
  1. Joel Lopez

    June 27, 2023

    Need help identifying my pool

    Reply
    1. Matthew Simmons

      June 28, 2023

      If you would like us to ID the pool. Please email the following pictures/information to agparts@inyopools.com: Size & approximate age of the pool Image of the pool wall. Image of the upright Image of the top rail connection to the upright. Name of the pool (if known). Again, email the pictures to agparts@inyopools.com and our a/g pools parts dept will contact you through a direct reply to your email.

      Reply
Eric

May 22, 2022

Is there still liners available? for pool size 8’x15’x52″ overlap above ground 25 mil.
Thank you

Reply
1. Matthew Simmons

  May 25, 2022

  Yes, we still carry above ground pool liners, but we do not offer a selection in that size.

  Reply
2. Tina

  June 6, 2023

  Please help! I sent an email to identify pool and know if it’s fixable. I sent pictures. Did you receive? I appreciate any guidance. Thank u

  Reply
  1. Matthew Simmons

    June 14, 2023

    At this time of year, we’re getting hundreds of pool identification requests, so response times are longer than usual. The couple of reps who specialize in this area try to reply to requests within 5-7 business days.

    Reply
Jordan M

May 29, 2022

I purchased a used above-ground pool identical to the Wilbar Sandy Point (Version 1) on this page and I’m needing to purchase replacement bottom plates. The originals that came with the pool appear to be resin, however upon researching, I’m not finding anything that looks similar to the bottom plates I have. Any recommendations?
https://www.inyopools.com/blog/identify-my-above-ground-pool/

Reply
1. Matthew Simmons

  June 2, 2022

  If you would like us to ID the pool. Please email the following pictures/information to agparts@inyopools.com: Size & approximate age of the pool Image of the pool wall. Image of the upright Image of the top rail connection to the upright. Name of the pool (if known). Again, email the pictures to agparts@inyopools.com and our a/g pools parts dept will contact you through a direct reply to your email.

  Reply
2. Dan

  March 18, 2024

  As instructed I sent an email to the address listed I’m hoping someone can please help me identify my pool. It was destroyed by a tree in a storm. We moved to this house and then purchase the pool ourselves and I cannot find any identification like model numbers or similar on it. I have emailed in photos comparable to what I see shown here hoping that will help someone please help me figure out what I have if it still exists or what the closest alternatives are for size and shape. I have a deck that’s custom made to go around a part of it I’d like to keep and have match still. Thanks, Dan

  Reply
Dan

July 19, 2023

Can I post a picture of pool? I could not find it in the lsit.

Reply
1. Matthew Simmons

  July 19, 2023

  If you need it identified, I suggest emailing pictures to upload@inyopools.com.

  Reply
