Variable Speed Pool Pump or Dual Speed… Which is Best for Me?

Variable Speed Pool Pump or Dual Speed
Patrick Paroline

9 Minute Read

166
Comments

Did you know that a swimming pool pump…

  • Accounts for 25% of your household’s energy bill
  • Is the largest electricity consumer in your home
  • Uses three times the energy of a refrigerator
  • On average costs $427 per year to operate

Recently my wife and I built a swimming pool in our backyard and from a professional standpoint this was such a great learning experience. Building our pool allowed me to test out many of the pool products that I have recommended over the years. During this process I found there were products that I absolutely loved, but at the same time there were a few products that I have recommended on a daily basis that I would not recommend in the future again.

One of my favorite items connected to my pool is my Jandy variable speed pump. It is so quiet, gives me great flexibility with my water features and most important it is extremely energy efficient. During the time period that I was building our pool, I also started to participate quite a bit in a few online swimming pool forums and whenever the topic of pumps would arise I would be eager to suggest a variable speed pump. As I commented on this topic I noticed that there were a few who felt that variable speed pumps were not the best choice and in many cases would suggest a dual speed pump. So, I decided that I would dig a little deeper into this topic and I have shared my findings in this blog post.

The three types of pool pumps explained

First, let’s start with a basic overview of each of the three types of pool pumps on the market today.

Single Speed Pool Pumps (Cost $250-$500)

Single Speed Pool Pump
Single Speed Pool Pump
  • Highest operational costs
  • Least expensive upfront costs
  • Operate at a single speed of 3450 revolutions per minute (RPM)
  • Operate at a single horsepower ranging from ¾ HP to 3 HP
  • Account for 75% of the pool pumps in the USA

Dual Speed Pool Pumps (Cost $500-$700)

  • Lower operational cost that contributes to significant operational cost savings
  • More expensive than Single Speed Pumps
  • Operate at two speeds – 3450 RPM and 1725 RPM
  • Operate at two different HPs
  • Quiet at low speed
  • Difficult to fine tune flow rates
  • Additional controller or timer may be needed

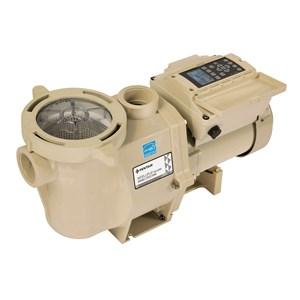

Variable Speed Pool Pump
Variable Speed Pool Pump

Variable Speed Pool Pumps (Cost $650-$1,200)

  • Least expensive pump to operate
  • Most expensive upfront costs
  • Operate at full range of speeds from 600 RPM – 3450 RPM
  • Operate at full range of HPs
  • Easy to fine tune flow rates
  • Extremely quiet

So why the debate?

The main point of the debate is if you should pay the extra upfront dollars for a pump to reap the rewards of lower operational costs in the future and subsequently how much more should you spend. Should you spend a little bit more on a dual speed pump for pretty good energy savings or should you pay more for a variable speed pump for even greater energy savings and the ability to fine-tune your flow rates?

Why do dual speed and variable speed pumps cost less to operate?

Typically single-speed pumps are too big for your pool. Dual speed and variable speed pumps address this wasted energy as they can operate at different speeds. Running your pump at lower speeds for longer periods of time will cost you much less in operational costs than running your pump at a high speed for shorter periods of time. The energy savings that are gained by replacing a single speed pump with either a dual speed or variable speed pump are based on an engineering principle known as the Pump Affinity Law. Without taking you back to high school algebra class, this principle states that the energy savings are disproportionately larger as you lower the speed of your pump. For example, if you reduce the RPMs of your pump by 50% you don’t get a 50% energy savings you actually get a 75% energy savings and lowering your RPM by 66% gives you an 89% energy savings.

For example if you reduce the RPMs of your pump by 50% you don’t get a 50% energy savings you actually get a 75% energy savings and lowering your RPM by 66% gives you an 89% energy savings.

Is your electricity expensive?

Electricity costs vary widely from state to state and this plays a big factor in determining which pump to choose. You pay for your electricity by the kilowatt-hour (kWh) and the pricing you pay per kilowatt-hour varies greatly from state to state. Dual speed and variable speed pumps use far less kWh than traditional single speed pumps with variable speed pumps using the lowest amount of kWh. If you do not know how much you pay for electricity then this website, The Cost of Electricity for All 50 States, shows you how much you pay. Below I have listed a few of the more popular states and if they fall into the expensive electricity, average electricity or inexpensive electricity categories. Currently, at the time of writing this blog post, the national average in the United States is 12.29 kWh.

Expensive Electricity
Electricity Costs

Expensive electricity (.30 – .17 kWh) – Traditionally the most expensive areas in the United States for electricity are California, Hawaii, Alaska (a huge pool state), New York and the Northeast.

Average electricity (.11 – .16 kWh) – Florida, Michigan, Ohio, Arizona, and Texas.

Inexpensive electricity (.08 – .10 kWh) – Tennessee, Oklahoma, Louisiana, Kentucky, Mississippi, and West Virginia.

Do you run your pump all year round?

If you live in a warm climate then you will see the potential for greater energy savings than those in cooler climates. This occurs because pool owners in warm climates run their pumps 365 days per year and those in cooler climates shut down their pool pumps for a good percentage of the year. On average pool owners in cooler climates run their pumps 122 days per year. If you run your pool pump 365 days per year in a warm climate then this would be equivalent to three pool seasons in a cooler climate!

Let’s look at the #s

The proof is in the #s so let’s dig into the #s a little deeper. Below I am going to run through a few examples showing the operational costs for a single speed, dual speed, and variable speed pump. Hopefully, this will illustrate how much of an impact electricity cost and climate come into play when determining your pump.

If we take the average size pool of 22,000 gallons and use the guidelines of turning your pool over once per day we come up with the following #s.

Warm Climates

[table id=10 /]

Note: Example above is using National Avg. for electricity of 12.29 kWh if you live in a state with expensive electricity like California then your savings will be far greater. Calculate exactly how much your pool pump will cost to operate in your state.

Cool Climates

[table id=11 /]

Note: Example above is using National Avg. for electricity of 12.29 kWh if you live in a state with expensive electricity like New York then your savings will be far greater. Calculate exactly how much your pool pump will cost to operate in your state.

Pump payback time

The two biggest factors that determine how fast a dual speed or variable speed pump will pay itself back are:

  • Climate
  • Cost of energy

In warm climates, you will run your pump 365 days a year meaning you have more opportunity for energy savings. In areas where energy is expensive, the payback will also be quicker.

Just tell me what to get

If your pocketbook can take the additional upfront cost of a dual speed or variable speed pump then I would always suggest one of these pumps as the payback on average takes six months on a dual speed pump and 15 months on a variable speed pump.

In general, my suggestion would be based on if you live in a warm climate or cool climate and secondly if you have expensive energy costs or cheap energy costs.

Warm climate & expensive energy – Variable speed pump

Warm climate & cheap energy – Dual speed pump

Cool climate & expensive energy – Variable speed pump

Cool climate & cheap energy – Dual speed pump

Other Considerations

There are quite a few other considerations apart from the cost of operation that you will want to consider to help you determine if a dual speed or variable speed pump is right for you. Below is a list of these considerations.

Power company rebates

Power companies are offering rebates as high as $400 for switching over to a variable speed pump. In many cases, the power company rebate can make a variable speed pump cost less than a dual speed pump. Make sure to check if your power company offers a Variable Speed Pump Rebate. If so, then it may be a no brainer to opt for a variable speed pump.

Ability to control flow

If you have a lot of bells and whistles connected to your pool like waterfalls, a spa, water features, etc. then I would suggest a variable speed pump as it will allow you to control your water flow for each feature.

Pipe size

Keep in mind your pipe size when selecting your pump as the diameter of your pipe will affect which HP pump you can use. Smaller pipe sizes may not be able to handle large HP pumps. Here is a guide showing the GPM ratings for the most common pool pipe sizes.

[table id=9 /]

This means that if you went with a 3 HP variable speed pump that can output 150 GPM and you only have 1-½” pipe which has a max flow rating of 60 GPMs then the majority of the higher speeds of the pump will go unused as the plumbing is unable to handle this high flow of water.

Additional controller or timer

Dual Speed Pump Timer
Dual Speed Pump Timer

A consideration when looking at dual speed pumps is that in most cases you will need to purchase a separate dual speed timer. The price of this timer ranges between $140-$200 based on your current set up. If your pump is turned on and off by a standard yellow dial timer then you would go the $140 route which is a second timer which controls the switching between high and low speeds where your original timer would be for turning the power on and off to the pump. If you don’t have a timer for your pool or your project is the construction of a new pool then you would need a two clock timer which is the $200 timer. In most cases, for pools with automated control systems, an additional timer is not needed. There are a few systems like the Jandy Aqualink which require a special dual speed relay.

Motor replacement or pump replacement

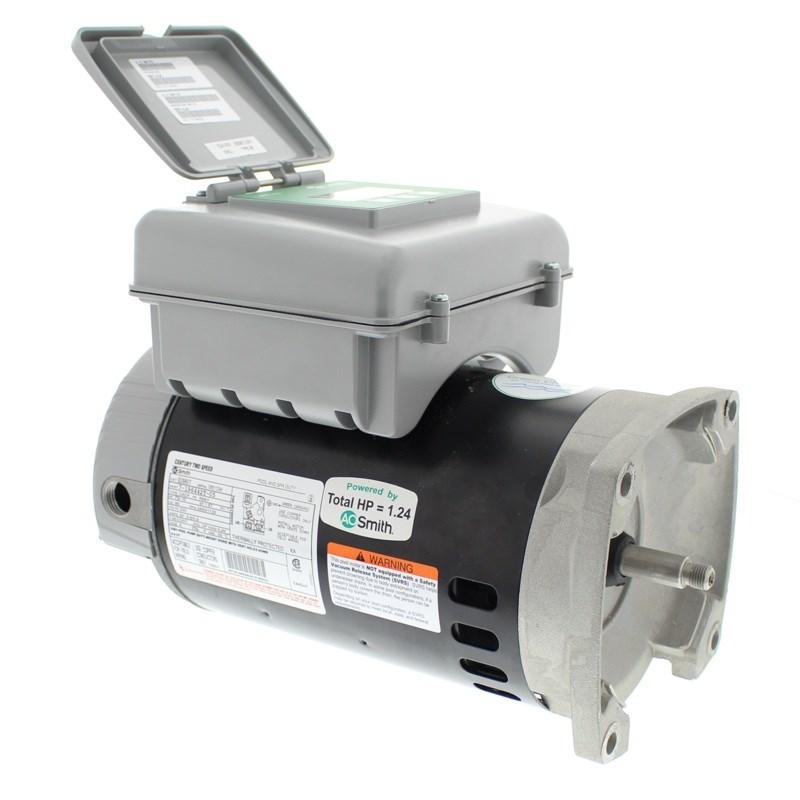

Dual Speed Pump Motor W/ Timer
Dual Speed Pump Motor W/ Timer

Often there is no need to replace your entire pump and you can save a considerable amount of money by just upgrading your motor to a variable or dual speed motor. So should you replace your entire pump or just your motor? A few questions to ask are:

  • How old is your pump?
  • Are there visible signs of damage to your pump housing?
  • Are parts available for your pump?

In the case of the dual speed pump and motors, it often makes sense to upgrade your motor to a dual speed motor. The reason being is there is a great new motor on the market that has a digital timer mounted directly on the motor meaning that you don’t need to purchase the separate $100-$200 timers indicated above. For some reason unknown to me this digital timer option is only available on replacement motors and not an option on new pumps. Hayward, Pentair, and Zodiac, if you’re listening to this is your next big product and I will only ask for 20% of the revenue…

Pool size (High Stakes Poker)

Typically the larger the pool size the larger the pump which means the operational cost is going to be higher than a smaller pump. So with larger operational costs comes larger operational savings tipping the scales in favor of a variable speed pump on large pools.

Water Features

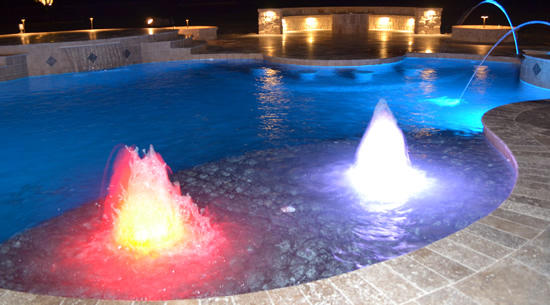

Pool Water Features
Pool Water Features

As mentioned earlier one of the key benefits to a variable speed pump apart from operational savings is the ability to control the flow of the pump. This feature comes in very handy if you have water features connected to your pool.

Do you like gadgets?

Many of us like the latest and greatest items on the market. I typically fall into this category. If you wait hours in line for the newest iPhone then you may be a prime candidate for a variable speed pump as they are pretty cool. It is neat to be able to dial your pump into the exact RPM needed and hear the pump ramp up or dial down.

Quiet

If your neighbors are complaining about your pump’s noise then a variable speed may be the way to go. Variable speed pumps are quiet because the motor is Totally Enclosed Fan Cooled (TEFC) meaning that it is much quieter than a single speed or dual speed pump. Often when I have had my pump on at very low RPMs I have to double-check that it is actually on.

In Summary

Your pool pump is most likely the most expensive energy consumer in your house so it makes sense to explore options on how you can minimize this expense. In almost all cases I believe that it makes sense to go with a dual speed or variable speed pool pump over a single speed pump. When choosing between a variable speed pump and a dual speed pump the two most important factors to consider are the cost of your electricity and how often do you use your pool.

Comment below with details about your swimming pool and details about where you live and we will help you determine which pump type is best for you.

Troubleshooting Topics

Need Replacement Parts?

Swimming Pool Products

Pumps
Cartridges
Salt Systems
Liners
View All Pureline

166 responses to “Variable Speed Pool Pump or Dual Speed… Which is Best for Me?”

  1. Michael Payne Avatar
    Michael Payne

    While I agree with you the variable speed pump is generally the way to go, much of the $ savings is lost if you have solar panels to heat the pool. The more water going through the panels the more heat they make. You can’t run the pump at slow speed and still pump water to the roof.

    The variable speed pump is annoying in how easily it shuts off. Turn on\off the pool vacuum and the pump shuts off. It’s also (I feel) excessively hard to program or change the run time on. Zero usability work went into the on-pump menu for it.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Michael, very nice post. I agree with the trouble of having a solar system on any pool; the necessary power to reach the panels almost offsets the savings of a variable speed pump. The key is dialing in a pool temperature or heating schedule that optimizes the heating capability of the solar panels. For example running it only at the hottest times of the day or lowering the temp that activates the solar panel heating system. Are you sure you need the full strength of the pump to read the panels or can the RPMs be dialed back to save money?

      As for the pump scheduling, the few pump scheduling programs I have seen have been relatively simple. What is the make and model of your pump? Maybe we can figure out what the issue may be.

      Reply
      1. Stephanie Avatar
        Stephanie

        I have an older pool with 1.5 inch pipes. I live in Florida and also recently bought a heat pump for the pool to extend my pool life. My pool originally only had one inlet. I added two more and just resurfaced it. Now I need a new pump. I know it can only take a 1.5 hp pump. I have heard about how much savings a variable speed pump. Will a variable speed pump work on my pool. It is a 23,000 gal pool.

        Reply
        1. Matthew Simmons Avatar
          Matthew Simmons

          Yes, a variable speed pump would work for your application. Variable speed pumps should work for most pool applications.

          A good candidate for your replacement pump is the PureLine Prime Variable Speed Pool Pump 1.65 HP – PL2605

          Reply
      2. Carol Avatar
        Carol

        Great article. I read many posts and didn’t see this question. We are looking to replace our single speed, 2hp, 56 gpm flow rate with the pure line 2hp or 2.7 hp 110gpm. We have a waterfall from the spa to pool. We have a second pump for the spa. Is the hp more or less important than the gpm? We don’t want the extra cost of the 2.7, but want to be sure the pool gets really clean.

        We are in the Palm Springs cCalif area with high temps – 105-120+ for 3 months. We have a copper silver ionizer for 9-10 yrs working great , but it can’t keep up with the algae in the summer, so we are using a lot of ch.orine. Want to go with UV also Delta or spectralight are our top choices. You don’t sell them?? Any help on pump or UV? We had salt and don’t want to go back. Thank you,,

        Reply
  2. Jerry Avatar
    Jerry

    It is my understanding regarding solar heating, that once the water starts back down from the roof, a siphon effect takes over and the power needed to lift the water is greatly reduced. Run the VS pump on a prine cycle for five minutes, long enough to establish the solar system, and then back it off to a more economical flow.

    Reply
    1. Sky Avatar
      Sky

      I originally thought you were right. After a few repairs on my roof, I found avacuum valve. This allows the water to drain from the panels. So I believe the pull of siphon is cancelled by this vacuum valve. I installed a flow meter on my 3hp system with solar on the second floor roof. 85-90gpm without solar, 65-60 gpm with solar.

      Reply
  3. Brian Avatar
    Brian

    I am in the process of swapping out a single speed motor for a variable speed motor. I am in California. Do I need to have a timer on a 2-speed motor according to CA law?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Brian, that s something you will want to check on with your local home inspector or whomever enforces the codes in your area. Codes vary a lot from area to area so it best to speak with a local technician or inspector for a current/up-to-date answer.

      Reply
  4. Mike Givens Avatar
    Mike Givens

    If you have no air leaks in the piping then the difference in pressure is only the difference between the input and exit. If the two ends stay below water level then there should be very little pressure except for the initial pump up to the highest level. In my opinion;}

    Reply
    1. Chris Avatar
      Chris

      Mike, there are frictional losses due to the piping and fittings. You also lose a lot of pressure across the filter element. Depending on your set-up, these can be quite large.

      Reply
  5. Mayur Avatar
    Mayur

    Angonizing decision. This excellent article takes the argument of why one should not go for variable speed pump. Difficult decision when energy savings would not be fully in older pools with intake pipe of 1.5 inches. I realize I am not going to use just $10 worth of electricityper month but 50% would be helpful. I have single speed motor that I am advised costs $100 per month. Thank you very much for this informative article.

    Reply
    1. paul b Avatar
      paul b

      again a variable speed pump can be dialed in for your pipe dia.. therefore at a lower speed comes savings that far outreach initial cost of pump. Most utilities have a higher rate also for max amount of amp spike. ex. if your pool pump starts up the same time you start up your dish washer, or cloths dryer. A single speed pump last about 7 years whereby a vfd pump will last over 10 years.

      Reply
      1. Avatar
        Anonymous

        10 years lol

        Reply
      2. K. S. Avatar
        K. S.

        Just replaced single speed pump motor with dual speed motor. Not much difference in noise as both seem fairly quiet. Although properly grounded…..A close proximity lightning strike took it out.

        Motor was 14 years old and set to run 7 nights a week from midnight to 4 AM. Also runs when using pool and during maintenance.

        Reply
  6. Julie Avatar
    Julie

    I am building a pool and we do have a spa, water features, bubblers but the water features bubblers will be on a smaller single speed pump with pool spa on the higher speed pump. I’m in Dallas area where folks run pool all year. My builder is giving me choice of the following (all Hayward)

    Single speed – SP3220EE 2 HP Tristar

    Dual speed – a Hayward also but they did it specify which one

    Variable speed- ecostar SP3400VSP 3Hp

    Help? Our pool will be around 17,000 gallons

    Thanks!

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      My preference would be the Variable speed option, but I would switch out the EcoStar for a Pentair Intelliflo. I have taken too many calls concerning the EcoStar’s finicky controller, plus the IntelliFlo is less expensive in most places.

      Reply
  7. Julie Avatar
    Julie

    The three choices above are for the main pool pump (not the water features)!

    Reply
  8. deborah Avatar
    deborah

    I have an older pool (40 years) that needs a new pump. I am trying to decide whether to get a dual speed pump, or a variable speed. I live in Wisconsin, so only use the pool about 3 months out of the year. I am also planning to move within the next year. Would it be worth it for me to put in a variable speed pump???

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      For your situation, it would not make much sense to invest the money into a variable speed pump. I would go with the dual speed pump.

      There is no need to throw money into a pool pump you will be unloading in a year.

      Reply
      1. Joe Avatar
        Joe

        Why throw the money into a dual speed pump? If you will only be using the pump for 3 months and then selling, it makes no sense to put money into it. Just go with a single-speed pump.

        Reply
  9. Sarah Avatar
    Sarah

    Hello, thanks for this article. We have a one speed pump, fro a 15,000 gallon pool. We just moved in, so we’re trying to figure out whether a variable speed pump might be a good switch for us. Any input? We live in Southern California and so will be running the pump all year round. If yes, any input on brand? Thanks for your help!

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Sarah – a variable speed would be a great option for the Southern California area because of California’s high energy costs and energy rebates.

      Because California is so energy conscious, power companies will offer rebates to homeowners installing variable speed pumps to offset the higher cost of the pump. These rebates can reduce the cost of a variable speed pump down to the cost of a single speed pump. Then you add the operating cost savings of a variable speed. Eventually, it pays for itself.

      If you plan on replacing the whole pump, I suggest the Pentair IntelliFlo. But if you just want to replace the motor, I suggest the Century V-Green, Part One & Two.

      Reply
      1. Scott Avatar
        Scott

        Hi Matthew. I live in Arizona. I have a 35k gallon pool with a large Water fall feature. Currently have two pumps…one for the pool and 2 hp for the water fall. I just purchased the Pentair Intellflo for the pool. Can I use the new Pentair intelliflo for the pool and the water fall?

        Reply
        1. Matthew Simmons Avatar
          Matthew Simmons

          You can definitely use it for the pool, but I have doubts trying to use one pump for both. Those two pumps can probably put out a good bit more water than even the Intelliflo. Plus the replumbing necessary to make it all work would probably be extensive.

          I would add the Intelliflo to the pool but keep your waterfall pump.

          Reply
        2. Mc Avatar
          Mc

          I have a variable speed that I paid $1,200 for it last me two years now it’s completely dead, do your research before you buy it.

          Reply
          1. Matthew Simmons Avatar
            Matthew Simmons

            Do you have an idea about why it died?

    2. Jacob Varghese Avatar
      Jacob Varghese

      Hi Mathew.
      We plan to buy a home in Riverside California.The house has a pool and the pump is 15 years old.We are not sure if we need to change the pump.I understand that we need to run the pool pump 365 days.The is also a spa.
      If I buy a new variable pump does it include the motor as well.If not would I have to buy a new motor as well.How much would it cost to change the motor and the pump.Which model would you suggest?

      Reply
      1. Matthew Simmons Avatar
        Matthew Simmons

        Here is our varaible speed pump section, the motor is included with the housing.

        The crowd favorites seem to be the Pureline Prime VS and the Pentair IntelliFlo

        Reply
  10. John Frazier Avatar
    John Frazier

    I just purchased a brand-new Centry 21 single speed 1 1/2 hp pool pump from you. Is still in the box. I’m interested in a variable speed pool pump. Is there anything that you can do to help me out in exchanging the single speed for the variable speed

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      John – call our customer support line (877-372-6038) and a rep can help you out.

      Reply
  11. Michael Avatar
    Michael

    I live in Houston Texas and my pump just went out on me; My pool size is only 11,000 gals; The energy cost here is approx. 9-10 cents per kilowatt. can you advise me on whether to go with a variable or dual speed pump; Also which model and brand; Also can you advise me on how do I find out if there are any rebates from our local electricity company. thanks!

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Michael, the article covers the calculation you need do pretty thoroughly; they involve daily run times, length of pool season, flow rates, and of course electrical cost. And it also has a summation at the end:

      Warm climate & expensive energy – Variable speed pump

      Warm climate & cheap energy – Dual speed pump

      Cool climate & expensive energy – Variable speed pump

      Cool climate & cheap energy – Dual speed pump

      But if you want a recommendation for a pump, you could not go wrong with the Pentair Intelliflo or the Pureline Prime VS

      Also, rebates are dependent upon your electric company. You will need to call or visit the electric company’s website for details.

      Reply
      1. Gloria Avatar
        Gloria

        Why do you not like the Hayward variable speed pump?

        Reply
  12. Mike Smith Avatar
    Mike Smith

    I live in Vero Beach Fl with an older 10,000 gal pool. I am adding solar panels on the roof, and I want to replace the old Jacuzzi pump. I hope to use the pool year around once the solar panels are installed. What pump would you recommend?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      I suggest using a variable speed pump, because it gives you so water flow flexibility. A variable speed can be run on lower revs for normal filtering and when you activate the solar panels you can up the flowrate. Variable speed motors are also more durable than the induction style single and two-speed motors.

      The two variable pumps I prefer are the Pentair IntelliFlo and the PureLine Prime 2.7 HP

      Reply
  13. John. Avatar
    John.

    I live in Las Vegas. 37000 gallon pool. 2 inch line. Salt system with a triton 2 sand filter. I am looking options for a variable speed pump. What is recommended.

    Reply
    1. John. Avatar
      John.

      Also have a gold line aqua-logic control for the system. Thanks for any help.

      Reply
      1. Matthew Simmons Avatar
        Matthew Simmons

        If you want a variable speed pump that interfaces with your salt system then I suggest the Hayward Eco-Star 2.7 HP or the PureLine Prime 2.7 HP. The Pureline is a fraction of the cost of the Hayward, while having similar flow rates.

        Reply
  14. Cory Shell Avatar
    Cory Shell

    Hi there
    I live in Northern Calif. and have a single speed motor on a 25k gallon older pool with 1 1/2 inch pipe. I run it from April thru October. Wondering if a variable speed is right for me.

    Thanks

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      As Patrick covers in the blog, it depends on utility company rebates, electricity costs and the demands of your system. The first thing is, the 25k gallon an accurate assessment of your pool size or is it a guesstimate? Then, we have to figure out the feet of head of your pool to determine what flowrates you can get with the smaller 1-1/2″ pipe. Read this article on how to calculate feet of head. Utility companies also have a rebate section on their website to help you determine if the pump you’re interested in is acceptable. If their website is not helpful, give them a call.

      Reply
      1. Cory Shell Avatar
        Cory Shell

        Ok thanks Matthew
        I have a buddy who has a brand new Jandy VSFHP165JEP 1.65 HP variable that he will sell me for $400 ( he paid $900)……. Figured my single speed is getting old and it might makes sense at that price and with really high elec rates here in Northern California…… thanks again and I wll check with the energy company about a rebate….

        Cory

        Reply
  15. Patrick H. Avatar
    Patrick H.

    OK, so here’s where i am confused. All the literature and ads for variable speed pumps seem to state that the energy savings come from the ability to program the pump speed to an “optimum” value. But what I can’t find is how one determines what that optimum speed is. It would seem to me that a variable speed pump programmed to the wrong speed(s) is no better than an old fashioned single or two speed pump. So what gives? is there a magic formula or what?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Optimal speed is finding the sweet spot where you are running your motor on the lowest settings to maintain your’s pool normal water quality. If you look up the Law of Affinity, it essentially states, RPMs and amp use are not comparable. A motor running at 3450 RPM may run at 15 amps, but when you cut the motor to half speed at 1725 RPMs the motor will only be using 2-3 amps, not 7.5. The point of the variable speed is to give the user a better way to throttle the motor, allowing for maximum savings. A variable speed are rarely set to 3450 RPMs because it negates the point variable speed drive.

      Variable speed is by no means a plug and play motor if you want to peak savings. There will be a feeling out period where you run the pump at an RPM setting for a few days, check the water chemistry to make sure everything is still in check. If the levels check out, then you can take another step down, and keep doing so. When you reach an RPM that causes the water chemistry to take a nosedive, you can attempt the same RPMs with a longer run time or go to the previous steps RPM.

      There is no magical formula because every pool is different after you factor variables like pool size, feet of head, and chlorine demand, and bather load. you will also see savings over the life of the motor, because variables speeds could last 10-15 years whereas the new single and dual speeds motors only last 3-5 years.

      Reply
      1. Lori Avatar
        Lori

        Hi,

        I need your opinion on a really important issue I am having with my next door neighbor’s pool system. I hear a low frequency humming in my home 24/7 so I hired an acoustical engineer who determined it was potentially my neighbors pool pump system. We cannot confirm since they are not willing to work with me. All I know is something is running 24/7 over there and the problem began when it was installed. They told me it was a very expensive system and they will not even turn it off long enough for me to determine if it is the source. The pump runs all winter with a tarp and potentially a heater (I’m located in PA). I notice it gets louder in my home around 10 pm to 10am, so I thought it might be on a timer. That’s how I found this blog. Can someone please tell me if a pool pump/filter system can cause low frequency humming in my home. I really appreciate any help you can provide.

        Reply
        1. Matthew Simmons Avatar
          Matthew Simmons

          Too bad your neighbor will not help you figure out the issue. I could not tell you one way or the other if it is the pool pump causing the hum in your house. A pump motor with bad bearings creates a noise that would drive anyone batty. A loud hum could be a bad capacitor issue. But again, this is not really a pool question, so I am out of my depth.

          You might want to try TroubleFreePool.com; they seem to answer a bunch of out-of-the-ordinary questions.

          Reply
        2. Emily Millington Avatar
          Emily Millington

          Most definitely yes. Particularly with these more expensive, superficially “quiet” variable speed pool pumps like the pentair models. You will hear a low frequency that transmits through the ground and through the foundation.

          If they don’t have the pump on a rubber mat, it needs to have a rubber mat installed to isolate the vibration and to dissipate the energy before it’s transferred into the ground.

          Reply
  16. Georges Avatar
    Georges

    From what I understand with variable speed, the approach is to turn over the pool water as slowly as possible, meaning running the pump for 8 hours or maybe more. I’m considering taking the opposite approach. To take advantage of power provided by photovoltaic solar panel, I’d want to try to turn over the pool by running an oversized HP pump during peak solar hours, say 10-3, so only 5 hours or so. Would variable speed provide any benefits under these circumstances? Located in warm climate & expensive energy.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      If you’re only running the pump 5 hours a day and only on high speed, it does not seem worthwhile to install a variable speed pump. Save the money and get a single speed pump.

      Reply
  17. Jen Avatar
    Jen

    We have a large pool (40,000 gallons) in Ohio and our 1 1/2 HP Hayward pump stopped working at the end of the summer but we were able to squeak through shutting it down for the winter. We were looking at what to replace it with this Spring and were thinking that moving to a 2HP 2 speed pump would help with energy cost and pool clarity. It’s an older pool (30 years) and since we moved in 3 years ago, we’ve struggled with it but are making progress. I don’t want to make the mistake of replacing the pump with something that doesn’t do what we were thinking it would. Thanks

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      What size lines do you have, 1-1/2″ or 2″? Also, do you know the feet of head of the plumbing, before the pump?

      Reply
      1. Jen Avatar
        Jen

        2″ lines. I do not know about the other.

        Reply
        1. Matthew Simmons Avatar
          Matthew Simmons

          The size of your filter is another factor that can limit your HP options. With 2″ pipes, your system should be able to handle any pump you put on the system. But it is a matter of whether your filter can handle your pump’s output. Even though you will likely be running the pump on low speed, you will have occasions where high speed is necessary, this makes the filter’s capacity important.

          To figure out your pump’s flowrate, you need the pump model and HP (we got that) and the feet of head. The feet of head is a measure of how far the pump has to pull the water. The higher the feet of head rating, the lower the water flow. For a guide on how to measure this, read this guide How Do I Calculate Feet of Head for My Pool?

          Reply
          1. Jen Avatar
            Jen

            First of all, thanks so much for all of your expertise! Our filter is the Hayward Pro series S270T and the flow rate listed on the side of it for filtration and backwash is 74 GPM. As far as the feet of head, I will gather that data based on the informative link that you gave me or maybe I have that in the original pool paperwork somewhere. The pump that I was considering was the Hayward Super Pump 2HP but I was leaning towards the 2 speed.

  18. Jim-Bob Avatar
    Jim-Bob

    Yeah, those fancy variable-speed pumps look great on paper, then you get hit by an electrical storm and the thing fries to the tune of $500 to replace the keypad and “brain.” Coincidentally, that’s about the price of an entire well-made two-speed pump.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      In most areas of the country, a lightning strike is not too common. Down here in Florida, we have to worry about that more than most other places. You can install a surge protector to protect your pool equipment from such instances e.g., Pool Equipment Surge Protector 120V / 240V – PS3000.Also, install a bonding wire, which can help with stray electricity as well. Coincidentally, both of those combined are significantly less than dual speed pump.

      Reply
  19. Karen Z Avatar
    Karen Z

    I have a 13,000 gal pool in Phoenix and had a new variable speed pool pump installed last year.
    I would like to turn the heater on to bring up the temp to 82o. Do I have to run the pump on high speed during heating cycle?
    What is the most economical settings for heating the pool so I can swim in the afternoon.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Heaters have a minimum flow rate requirement, that varies on the model. If your flowrate is below the set requirement, your heat pump will not turn on. For single and dual speed pumps, flow rates vary depending on pump model, hp, and feet of head you would need to use your pump model’s pump curve to get the answer.

      Because it is a variable speed you can find out pretty easily by gradually easing up the speed to find the flow threshold.

      Reply
    2. Patrick Paroline Avatar
      Patrick Paroline

      Another thing to consider… to be on the safe side I would suggest running the variable speed pump a little higher when heating (even higher than the minimum flow set by the heater mfg.). I personally was running my variable speed pump too slow when heating my pool and the slow movement of the hot water melted the headers going in and out of the heater (to the tune of $800). This occurred even though the water was going fast enough to trip the flow switch in the heater. Just a cautionary tale =)

      Reply
  20. Carrie Avatar
    Carrie

    Putting in a new pool,18,000gal. Thinking about a D E 4820 filter with 1HP sp32102EE dual in ground pump OR would it be better to use sp2607x102s dual in ground pump? With that I would use 2″ pipe. Maybe you could recommend anything that would work better,also wanting a heat pump???

    Reply
  21. Matthew Simmons Avatar
    Matthew Simmons

    The SP32102EE is the pump that could push the most water, so I would go with that one.

    Reply
  22. Jared Avatar
    Jared

    I have 3 pumps for my system. 1 for the filter, 1 for the floor system and one for the water fall. Is 1 vari-speed enough to handle all this or should I get dual speed or stick with what I have?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      This all depends on the water flow demands of your system. If your combined water flow needs are 150 gallons then a variable speed is not going to be your choice. Plus if you get one variable speed pump, you will need to replumb your system to divert your water flow from the old pumps to the new single pump. The situation does not seem feasible.

      You can try a dual or variable speed as a replacement for the main pump since that is likely the biggest consumer of electricity. The other two are better left to single speed, because the waterfall and in-floor cleaner require a constant rate of flow.

      Reply
  23. Steven Avatar
    Steven

    Hello, purchasing a home with a 16 x 32 ft pool. It currently has a 1 Hp super pump and is kept opened year round with the pump running 24/7.

    I’m planning on converting to a salt water system and am debating between switching to a variable speed Pentair at the same time.

    The other debate is if I keep the pool open all year or spend additional money on a solid cover. The town has an average electricity cost of 11.4 cents and the average yearly temp is 60 degrees.

    Any thoughts on closing vs not closing in addition to a recommendation on switching to a variable?
    Thanks

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      It would help to know where you are in the country, also if you plan on swimming.

      If you don’t plan on swimming and do not want to be concerned with the pool maintenance (though it would be minimal in winter) then I would close it. It really is personal preference, either way.

      Reply
  24. Alex Avatar
    Alex

    I have a 10-12,000 “unsure” gallon pool in which the previous owner had Hayward SP3400VSP. The pump seems to have died (flips the breakers when started. Now I must choose Pentair VS or dual for the florida climate. I have been told by two companies, its overkill for the pool size to go single speed. However, energy cost is high concern. Your thoughts or recommendations? no features or spa exist, just a salt system.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Now that Variable speed motors have been out for awhile, prices are starting to come down. if you want to stick with a variable speed, but not pay out the nose for it, go with a Pureline Prime. It costs just a little more than a single speed pump but the motor is a quality Century-AO Smith brand.

      Reply
  25. Mark Avatar
    Mark

    I have Jandy Stealth JHP1.5 hp single speed pump. Would like to just replace the motor with a 2 speed for energy savings. Current motor is a AO Smith 7-164304-24 CAT B129. I control the pump times with a Aquilink RS4 thats about 9 years old. What 2 speed motor do you recommend and can the RS4 control switch the speeds? Or do I have to use a manual toggle? Thanks

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      The dual speed replacement motor would be the STS1152R. The RS4 should be able to control this motor.

      Reply
      1. Patrick Paroline Avatar
        Patrick Paroline

        If you go dual speed then you will need to upgrade your relay in your Aqua Link from the standard pump relay to a Dual Speed Pump AquaLink Relay.

        Reply
  26. Chris Avatar
    Chris

    I am building a vinyl inground pool and I live in NJ. My PB does not recommend a dual speed or VSP. I will be incorporating a heat pump. He says the pool will not be heated properly.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      A heat pump has a minimum flow rate it requires so it can properly transfer heat, this may be what he is talking about. He may be right on the dual speed because you only have a high and a low. But a variable speed allows you to dial in your flow rate so that you can hover around that minimum flow rate to save money on your utility bill. In the summer time when the heat pump is not a factor, you can dial back your variable speed to accrue even more savings on your utility bill.

      Reply
  27. Tiffany Avatar
    Tiffany

    Hi Matthew,
    Great article and posts. We recently moved from Northern California (hot sacramento region) to Dallas metro. We just completed a pool build. In California, we had a variable speed pump that mostly ran at 1400rpms for 7 hours. Our new pool
    in Dallas, we have a Pentair IntelliFlo and the pool company set it at 3400rpms for 10 hours. This defeats the benefits and our investment of a variable speed pump. My husband altered the rpms to 1400 rpms but the equipment keeps tuning off with that setting. So we’ve increased it to 2800rpm and the system works. Isn’t it odd that the system won’t support a lower rpm setting in Auto setting?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Pool equipment like heaters and salt generators have a minimum flow rate required for the unit to operate safely. If the flow drops below 15 or 20 gallons per minute then the unit will shutdown to protect itself. RPMs does not guarantee a flow rate and this is due to differences in each pool’s plumbing, or “Feet of Head.” If you install a 3 HP Intelliflo on two pools, one with 40 feet of head and the other with 100, the 40 feet of head pool will see a much higher flow across the whole scale of RPM settings.

      Also, which IntelliFlo do you have? Is it the standard 3HP or the 1HP?

      Reply
  28. Bill Avatar
    Bill

    My single speed motor just died (20+ years!). Had it replaced with a dual speed motor. I was running the system 10 hours / day with the single speed. How many hours do I run at low speed and how many at high speed now? Pool is in Arizona, 32000 gallons, want to avoid running between hours of 12pm (noon) and 7pm, due to electricity rate increase during those afternoon hours.

    Reply
  29. David Avatar
    David

    Great info Matthew! My need for a VS pump is a little different. My pool builder installed a 2nd pump for my catch basin which runs 24/7. Wind pushes water into basin and overflows. So, keeps water balanced. Also, use it when kids are splashing about. Currently have a dual speed pump. Its going out so am looking into VS pump to replace. This 2nd pump has a DE filter on it as well and also serves the water fall feature (in high mode). Normal operations have this only 10 min/day at high speed (and on high speed when activity in the pool). Pool is 22K gal and I’ve calculated daily cost to run this dual pump is $1.73 (again, primarily in low speed mode). Does it make sense to go with a VS option since I usually run my 2 speed pump at the lower HP (.33) and RPM (1725)? Also, my research suggests that my Aqualink RS controller would only program 1 high and 1 low setting regardless of a VS option (unless I purchase a Jandy VS pump). Any thoughts or just replace the dual speed motor?

    Reply
  30. Gabe Avatar
    Gabe

    Hi.
    I live in Sacramento, ca. Bought a home with a 13th gallon pool with a single speed pump. I also have solar heating for the pool. I run the pump from 11am to be 5pm daily may thru october. Winter time run it very sporadically. What kind of pump would work for me.
    Thanks, Gabe

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      My choice would be the variable speed because you can dial in the RPMs needed operate your solar panels. Ideally, this would give you options to run your pump at optimal levels for water flow and utility costs, without restricting you to just high and low speeds.

      Reply
  31. Henry Glover Avatar
    Henry Glover

    New 22K gallon pool with infinity edge plus spa with 4 deck jets ,two fire bowls and two bubblers. My contractor isn’t familiar with variable speeds pumps but insist Jandy Stealth dual stage is the best for my situation. 2 inch pipes but 3 inch for main pump. My home is built very energy efficient and I want the most efficient pumps for my application living in New Orleans where we could swim almost year around. I was thinking Hayward ecostar but seems like they have to many manufacture problems so I’m leaning toward Pentair . What do you think? And seem like he’s in love with Jandy controller also.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      I prefer the Pentair Intelliflo over the EcoStar because of those exact reasons. The EcoStar’s controller has shown reliability issues, which is not good because it is an expensive part to replace.

      Variable speed are ideal for installation like yours because you have so many combinations flow rates that are possible with those water features. A variable speed can give you the optimal waterflow for each of those while also saving you money. A dual speed limits you to high speed or low. But what if your most efficient water flow falls between those speeds? The low is too slow, and the high puts too much water through your jets. The variable speed is the Swiss Army Knife of pool pumps.

      Reply
  32. Avatar
    Anonymous

    I have a dual speed for a fairly small in-ground pool with a waterfall in Florida. Recently it began the annoying habit of stopping every day at noon. I thought it was the Duke Energy saving device on it, but they told me it wasn’t them. The company that does maintenance on our pool has determined that a heat sensor on the motor is over heating and turning it off. I can restart it after a half hour, but it runs for a little while and stops again.
    They just sent me two options – a dual speed for $585 or a variable speed for $1400. From the information in the article and comments from readers, I am leaning toward the dual speed. We are retired, on social security and don’t see amortizing the upfront cost in a reasonable time. Your thoughts?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      They are saying you need to replace the whole pump and not just the motor? Does the cost also include labor?

      My opinion, you can save the most money by replacing it with a like motor and a few gaskets instead of the whole pump. If the pump housing does not show signs of cracking and is not leaking, go with the motor. Does your pump housing look to be in good shape?

      Reply
  33. Jim Reynolds Avatar
    Jim Reynolds

    Sorry I forgot to type my name. Jim in Eustis, FL.

    Reply
  34. Mike Avatar
    Mike

    I’m in the ac buisness here in Apopka FL, I’m not a fan of variables, they are expensive upfront and they are easily taken out by power surges ,here in fla happens all the time, new high efficency ac units come with variable speed blowers, we change them out constantly. If you spend more upfront and it’s goes out of warranty, replacing can be $1000.0 that takes all your savings right back!!!

    Reply
  35. Jeff Avatar
    Jeff

    My 13 year old Jandy stealth motor just died. I am contemplating just replacing the motor but I have been entertaining the leap to variable speed for the past 3 years. My main concern is the price tag but I am also concerned about having solar heat and the panels being on the roof of a 2 story house. I also have a pool sweep and waterfall running off the current single speed pump (when it still worked). I live in Sacramento and the pool is 18,000 gallons. What are your thoughts? New motor for the single speed or venture to variable?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Well, you’re in California so there is a good chance your utility company provides rebates to help offset the jump in price. A variable speed pump like the Pentair Intelliflo is like a Swiss Army JKnife, it can fit almost any application with solid results. You did not list an HP of your current pump, so I do not have a frame of reference of what your system is like, but the IntelliFlo is 3 HP. So unless your single speed pump is a 5HP model, I think the variable speed would be a good option.

      Reply
      1. Jeff Avatar
        Jeff

        My pump says 2HP but the motor says 1HP so I assume I am on 1HP. I currently have a quote for the sta rite intellipro VSF and a solar touch panel for the solar. Will I need to run the variable at a higher rpm to keep the sweep and waterfall moving? I do understand the logic with the solar and the new panel, i.e. Only turning the solar on when needed and the rpm ramping when it’s on then back down when it is off. My main concern is not having as much in electricity savings with the waterfall and sweep?

        Reply
        1. Matthew Simmons Avatar
          Matthew Simmons

          A variable speed will usually need to be on the higher RPMs to run a pool cleaner, and especially if you are coupling it with a waterfall at the same time. But you likely not need to run on high speed. Your motor and pump situation doesn’t really line up unless someone changed the motor and impeller (possibly even the diffuser.) The more features you tack onto the plumbing, the higher the RPMs will need to be set; meaning, less savings you are going to get, that is just a fact. But the variable speed allows you to squeeze as many savings as you can, by throttling the motor.Even if you are skimming off 700 RPMs from your single speed, the cents add up.

          If you are looking for me tell you exactly what RPMs you need to run all your equipment on, I can’t do that. But if you want to know if the savings and quality of the pump is worth the expenditure, the answer is ‘Yes.’ The variable speed allows you to throttle the motor

          Reply
          1. Jeff Avatar
            Jeff

            I bought the house 4 years ago so I have a feeling someone had changed the motor prior to that. I haven’t had any issues the past 4 years so I assume the hp is ok.
            Thanks for all your help!

  36. Johnny Avatar
    Johnny

    Hello, I just bought a home in Florida that has a small pool. 8500-9500 gallons.. it has a single speed motor now. The house has a few solar panels on the roof.. however it’s warm enough most of the time here in Florida that I don’t think it would be necessary to use them all the time. I went to the pool store today and they were telling me to go with the 3hp jandy variable speed in order to have enough power to push the solar.. but it could dial way down when not using solar. I’m also converting to a salt system at the same time, another new jandy setup. They are offering 20% off both with 3 year warranty. What are your thoughts?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Thoughts on which part? The hp sizing or the three-year warranty?

      Reply
  37. Jack Avatar
    Jack

    Hi there,
    My pool has two single speed Whisperflo 2hp motors (1 pump for filter or spa, and 1 pump dedicated for the waterfall), one spa bubble blower, and one booster pump. Could I at least replace both 2hp motors and potentially the spa bubble blower with a 3hp InteliFlo VSP (those 3 pumps are the loudest)? I’m assuming the plumbing is viable.

    Thanks so much.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Jack, this is not a question I can answer because I can’t see your plumbing nor know any of the vital info needed. You might want to try TroubleFreePool.com Forum. You can post pictures of your plumbing, pipes runs and equipment.

      Reply
      1. Jack Avatar
        Jack

        Thank you. I’ll give it a try.

        Reply
  38. Matthew Matuse Avatar
    Matthew Matuse

    Great easy-to-read and informative article. Thank you P.P. and INYO

    Reply
  39. Matthew Avatar
    Matthew

    We need to replace our pump and I have talked to two pool repair companies. Both suggest a variable speed pump-which I am not opposed to as they say it is very energy efficient. Our pool is 16 years old, appx. 20,000 gallons and has a sheer descent waterfall. We also have solar panels. We live in No. California where it’s hot and we run it from April to October.
    One vendor is suggesting a Pentair SolarTouch controller and the other vendor is saying that is not going to be energy efficient and suggesting an “EasyTouch with screen”…which is estimated at $1500 compared to the estimate I received for the SolarTouch of $400….What is the difference between the two? I’m not sure what i need.

    Reply
  40. Tom Avatar
    Tom

    Hi
    I have to replace my pool pump and want to know if I should get a variable speed pump. I have a rectangular 20,000 gallon pool with two return lines and no water features. It is hooked up to a solar panels on the roof. I live in Southern Californa.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Because you are in Southern California your local utility company may offer rebates that offset the cost of a variable speed compared a single speed. Contact your utility company or refer to their website for info on variable speed pool pump rebates.

      Reply
      1. Tom Avatar
        Tom

        Hi Matthew

        I wanted to clarify- Is it better to go with a variable speed pump over a single speed? Take into account I don’t have any water features. I have solar heating. It is a rectangular 40×20 pool. What would you recomend?

        Reply
  41. Agustin Reyes Avatar
    Agustin Reyes

    I would like to replace my 2 HP Jandy pump with a Pentair VS pump. My two main considerations are a caretaker cleaning system which requires 14- 20 psi in order to work properly and a Pentair SWG. Will I be able to run the VS pump at low enough rpm to see any actual savings over the single speed pump?

    Reply
  42. Brian Avatar
    Brian

    Can you please update the article to explain exactly how the variable speed motor saves money?
    For example: If I have a pool with a bottom cleaner connected to the skimmer, and a solar heater on the roof, a certain amount of pump speed/suction/pressure is required to 1) push the water to the roof, and 2) provide sufficient suction to make the bottom cleaner operate. The way I see it, my pool requires a certain fixed speed for everything to work properly. Why then would I need a pump that changes speeds? Do I have to program a VS motor to the speed that is best for my equipment? If so, if that needed speed is the same, or similar to, a fixed speed motor, then why bother paying more for a VS option if there is no energy savings? How is one to know?

    Reply
  43. Bob L Avatar
    Bob L

    I live in the DFW area of TX and have fairly inexpensive electricity rates – currently about $.07 kwh. I have a single speed pump that only runs water through the DE filter and gas heater (which is used to extend the season), no waterfalls, fountains, etc . The Polaris Pool Sweep has its own booster pump which runs less time than the main pump depending on its need and the time of the year.

    Is a variable or dual speed worth me considering now or when I need to replace my pump?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Ok, but what is the size of your pool? What is the model number of your pump; and/or how long does your current pump run in a day? What is the size of your filter?

      Reply
  44. Avatar
    Anonymous

    I am considering a variable pump. I have 1 1/2 pipes but I have a 2hp pump and had to change the connecting pipes to 2 in to mate with the 2hp pump and motor. If I go to a variable should I go back to a 1 1/2 HP pump? From what I have read here the 2hp motor can’t get enough water because the underground piping is not able to supply it. I live in southern California and the size of the pool is about 18,000 gallons. It sounds like it would be more efficient to change the above ground pipes back to 1 1/2 in. And purchase a 1 1/2 variable speed pump. Right?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      To play it on the safe side, I would go with the 1.5 HP. An 18k gallon pool is well within the range of a 1.5 HP pool pump like the Pureline Prime, IntelliFlo, or Badu EcoM3V

      Reply
  45. Avatar
    Anonymous

    Hi Matthew
    Great thread! I have an older 30+ yrs filter system, American KDI. I was told if I were to change to a new variable pump I would have to do all new plumbing and filter system. Is this true? It seems from this thread you believe that I can just replace the pump or the just the motor and get a good result.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      You shouldn’t have to replace the filter system and piping to put in a new pump. Variable speed pumps can be installed for almost any application. The VS’s slide scale for water flow allows it to be adapted to a wide range of system requirements.

      You may be able to only replace the motor, but that depends on the model of pump. I am not sure which American Products pump is in a KDI package.

      Reply
  46. Brian Avatar
    Brian

    I need to replace my single speed pump. My repair guy says he can replace my single pump with a variable speed pump, but my control panel doesn’t support a variable speed pump. It is an older panel, but fairly sophisticated in that it supports the pool, spa, and heater. Does this sound correct?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      It would help if you gave a model number or make and model of the panel.

      And variable speed motors have the mounted control, so most pool owners should be able to set the run times and speed then let it handles its work unfiddled with.

      Reply
  47. Josh B. Avatar
    Josh B.

    Hi… I have a new 12,300 gallon pool installed in Florida with Variable speed Jandy pump. After initial 3 day startup the pool company recommends 12 hrs/day at 3200 RPM. Still seems like too long and too high to me but I’m new to all of this. I’m trying to research to figure out what RPM/run time I will need. One guy said he would never run it at lower then 2800-3000 RPM’s once we figure out how the pool will take after the first 30 days. Doesn’t make sense to me why I would even have all these lower RPM options then. Any advice at all for a newbie?

    Models Description
    VSFHP165JEP VS FLOPRO VARIABLE-SPEED PUMP 1.65 THP, WITH JEP-R CONTROLLER

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Using RPMs is an imperfect way of throttling waterflow because feet of head measurements can vary vastly from pool to pool, even if they are the same size. Click the link for an explainer of feet of head. For example, 3200RPM on pool ‘A’ may pull 50 gallons a minute (GPM) but Pool ‘B’ with a shorter feet of head can pull 65 GPM on 2500 RPM.

      I’ll presume your installer did not provide a feet of head measurement for reference you will have to dial it in with some trial and error. This is an excerpt fromn a different reply I had on this process:

      Extend the run time by two hours but drop the RPMs by a 1000 and let it run for a couple of days. Test your water at the end of the two days to see how it is reacting. If all is well, keep lowering the RPM and testing the water until you see a change in water chemistry. When the water starts to turn, extend your run by an hour or so. Keep playing with the RPMs and runtime until you find your max savings.

      Even though it is Florida, and is still relatively warm down here, you should wait until temps start hitting 80 to start nailing down pump schedules. There is not enough heat or rain to give you an honest assessment about the schedules you will ned in May.

      Reply
  48. Andrea Babb Avatar
    Andrea Babb

    We have a 25,000 gal pool and live in Kansas. We currently have a single speed and are looking to upgrade to a variable speed. I believe the pipes are 1.5”. Any suggestions on Pentair Intelliflo vs the Superflo?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      To give a better answer, I need more info.

      What is the HP of your current pump? How long are the current run times? How big is your filter?

      Reply
      1. Andrea Babb Avatar
        Andrea Babb

        The current pump is a Pentair Superflo high performance pump, with a replacement generic motor, which is presumed to be 1-1.5 HP. We have a Hayward high rate sand filter, which holds 250lbs of sand. The maximum working pressure is 50 psi. It has a filtration rate of 20 gal/min. All of our PVC pipe is 1.5”. Last season, we ran our pump nonstop 24/7 from May til September. Last year was the first time using the pool since we bought the house the previous Winter, so we are newbies at this. Thanks for all of your assistance!

        Andrea

        Reply
        1. Matthew Simmons Avatar
          Matthew Simmons

          Because your system already has the SuperFlo and has only 1.5″ piping, I would go with the SuperFlo VS 1-1/2 HP. Since I don’t know your actual feet of head, so I’ll just guess at an average feet of head rating of 30-45. That means you could turn over your pool water once in 14 hours a 2000-2500 RPMs. If you install a variable speed, the first couple of week will involve the process of dialing in, when speed and run schedule works best for your pool.

          For your current single speed, you do not need to run your pool pump 24/7. Most pools only need their water turned over once a day to keep it clean. It may need more depending on bather load.

          Reply
  49. Jon R. Avatar
    Jon R.

    Pool info:
    I live in Michigan near Brighton
    I have a 33′ round above ground pool built into the hillside. With all calculations it comes to 31,600gal
    My piping from the two bottom drains is 1-1/2″ coming out then turning into 2″ piping. 2″ piping from skimmer, 2″ piping for (2)1″ eyeball returns. Rough head calcs are 40′ before pump not including fitting or valves. I am looking to purchase a new pump and filter. I am looking at the Pentair SD80 sand filter and trying to figure out a pump. Can a variable speed pump work for this? some are saying the Pentair superflo VS. Or do I need to stick with a above ground pool pump? I would like to get something that is efficient and makes sense. Your feedback would be greatly appreciated. Last fall my pump died and realized after much research that the filter was way undersized for that much water. If there is any other info you may need, let me know. Thanks for your feedback.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      A couple of questions first. How deep is your pool? I did a pool volume calculator and the results were 25k-28k gallons. I used the usual above ground pool depths of 4 to 4.5 feet.

      Also, is your pump above or below the waterline? This will determine if your pump will need to pull the water to itself or if it will be gravity-fed.d

      Reply
  50. Jon R. Avatar
    Jon R.

    Mathew,
    Thanks for responding.
    Here is the info you are looking for:
    The pool has a 54″ wall and with a 7′ deep end. I needed to have a custom liner built from Latham. There is a 12′-6″ shallow end before it starts to transition to the deep end with 4′ slop. then a 11′ flat on the bottom and a
    3′-6″ slope to a 2′ ledge. The pump will be below the waterline. The pool will usually be getting used for about 3-1/2 to 4 months of the year depending on weather. I am not set on a variable speed pump either, just something that makes sense and is somewhat quite. I am also not dead set on the SD80 filter. I was also recommended a Hayward S270T2 filter with a 1-1/2hp Whisperflo. I am not sure what brad of filter is better. Some say Hayward is built stronger. Are the internal mechanism the same for either? I am planning to use Dr. Dryden’s active media for the sand filter. As for the pump, I am not fixed on a Pentair either. I am just looking for something that is well built to last, quiet and will work for my pool.

    A side note: When I was figuring the head I did NOT include any of the return lines. Since I have one by the pump and one on the other side of the pool there would be approx. of 30 feet of 2″ return lines. If a in ground pump is being used maybe head is not as much of an issue.

    I appreciate your help with this.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Feet of head really will not come into play because the pump is below the waterline. The pump will have a constant source of water barring your skimmer is clogged. I would stick with the above ground pool pump style. A dual speed should do the job for you.

      Besides the pump being below the waterline, the cost of a variable speed would take longer to recoup with your short season and low cost of a replacement above ground pool pump. If you still decide to go that route, I would think about the PureLine Prime Variable Speed Pool Pump 1.65 HP – PL2605

      Reply
      1. Jon R. Avatar
        Jon R.

        Mathew,
        I will look into the Pureline VS and also check out the Dual speed style.
        Thanks for your assistance with this.

        Reply
  51. Cliff Avatar
    Cliff

    Hi-I’m curious about your thoughts regarding a low hp single speed pump compared with a variable speed pump. I live in California and have a simple 23,000-gallon pool, just two skimmers and a sweep (no spa, heater/solar, or water features). I currently have 1.5 hp single speed pump and ¾ hp booster pump and about 40 to 50 feet of head. I would replace with a ½ hp Pentair Whisperflo pump and ¾ booster pump. I’m not sure how to compare monthly energy savings between a ½ hp single pump and a variable speed pump. Especially, considering that the initial investment of the low hp single speed pump is lower than the variable speed pump. Also, my utility company is going to an electricity schedule that will charge extra for use during 12 pm and 12 am in the summer months, which creates an incentive to turn the pool over quicker to avoid the higher rates. I appreciate any thoughts you have. Thanks!

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      The comparison between the motor is going to based on how long you need to run the pump to turn over your water at least once, and how much it costs to run it in that period. For a 23K gallon pool with 50 feet of head, I would not drop down to a 1/2 HP single speed. You are basically guaranteeing you will need to run the pump in that peak price 12 pm to 12 am slot. If you ever have to do any heavy filtering you’re stuck with a weak pump that will take forever to cycle your water. If you do not want to go variable speed, look at a dual speed 2-Green motor by century. But I would go with a the variable speed, because i am pretty sure you get very good rebates in California for switching to a VS.

      Also the booster pump doesn’t come into play because it is purely for the cleaner.

      Reply
  52. Dan S. Avatar
    Dan S.

    Hello – I’m looking to replace my current pool pump with a variable speed pump. My current pool pump is a 1 HP, 1.65 SFHP Pentair Whisper Flo (Part O-177450-03). I have 2″ piping. The pool is approx. 34,000 gallons, has a waterfall, 2 returns, 2 drain pipes on the bottom (~8ft. deep) and 2 skimmers. The filter is is a Pentair DE, 180008. Filter area is 48 sq. ft w/ a max flow rate of 120 GPM. Last summer I ran the pool pump 11 hours a day, the pool water stayed clean, and the chlorine remained at the appropriate level using a salt water chlorination system.

    I was looking at purchasing the Pentair 011018 IntelliFlo Variable Speed High Performance Pool Pump, 3 Horsepower, 230 Volt, 1 Phase – Energy Star Certified pump. Am I over doing it going up to 3 HP? I believe my filter will be able to handle it, I just don’t want to get more power than I need and defeat the purpose of having a variable speed pool pump. If that is too much power, can you recommend a more suitable pump?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      No, you are not overdoing it by going with Pentair IntelloFlo 3 HP. Especially for a pool of your size, if you ever have to do heavy duty filtering or a chemical treatment, you’ll be happy you have that extra oomph. Your Pentair FNS Plus have the capacity to handle that pump’s output. But the point of having the variable speed is running the pump at as low of an RPM as possible for longer periods. Your filter would rarely be tested to its limits if the variable speed is scheduled correctly.

      Reply
  53. Petros Avatar
    Petros

    Great post and thank you. An infinitypool in Greece directly exposed to sun about 10hrs a day with 6 months summer and size of approx 40,000 operates today with single speed pump of 3hp. Pump is 2 years old and operates well. Would it make sense to change to variable speed for now? KWh cost in Greece is 0.26c. Overflow runs 9-12 hrs a day in summer 5 months and 6 hrs in winter for 7 months. I was thinking what matters is how many gallons filtered in an hour? If this is the cae going with a lower speed requires more time, is the net impact a saving?

    thank you

    Reply
  54. Keon Avatar
    Keon

    Hi,

    I am purchasing a house that has a simple pool without any additional water features or spa etc. A lot of the examples for pump energy savings mention the pros of being able to vary the power depending on when you wanted to power extra features. Wouldn’t I simply run the pool for the amount of time it takes to turn over the water and shut it off? I’m unclear on how this style of pump would be wasting that much energy since it would run for less time than a variable pool.

    I do understand that the pumps are more efficient at lower speeds, so i suppose for a simple pool that has no features you’d run your pump at the lowest speed almost 24/7? Is a variable speed pump really going to give me that much savings?

    thanks!

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Yes, as was the point of the article, variable speed motors can provide great savings in operational cost in the long term. The savings come from the RPM and amp draw of a motor not sliding on the same scale. An easy example of this is to look at a dual speed’s amp usage. A B984 motor uses 11 amps on 3450 RPMs and only 1.8 amps on 1725 RPM. The RPMs were cut in half but the amp usage of the low speed is 16% of that of the high speed. The flow rate on low speed will drop to about a fourth of the high-speed flow rate.

      There are a few ways to set up a variable speed: one constant low rpm, lower RPMs during the day peak electricity hours then up the RPMs at night when they lower at night, or choose the middle of your high and low unfor 10-14 hours. Essentially, this decision is dependant on your preferences and utility prices.

      Reply
  55. David Avatar
    David

    I have a 22k IG pool and was built with 2 pumps and 2 DE filters. Primary pump is 2.5hp that runs 8hrs/day for pool and spa and has a SWG (Jandy) for chlorination. The other pump is 2 speed pump (2hp/.33hp) that is for catch basin and waterfall. My negative edge pool creates water going over by wind, thus 2nd pump for basin used to ensure catch basin doesn’t overflow and prevents water loss. Other than that, I turn it on high speed when swimming to keep water in pool. Pool co talked me into buying 2nd DE filter given trees around our pool. My question is in regards to VS pumps. Thanks to helpful info on this site, I calculated my 2 pumps yield 30% of my annual electric usage. THIRTY PERCENT! Wow. And that’s not including my polaris booster pump. I want to replace these pumps given I figure to be in this house at least 10 more yrs. For my 2 stage that runs in low speed 24/7 (unless swimming or turning on water feature), what pump would help ensure DE filter is optimally used? Is there a minimum GPM for DE filters? I have an FNS 48 sq ft. filter. I assume I could get the lowest HP (600 RPM – 1/4hp) and use that mode for majority of time 24/7 and then turn it up when needed. I am struggling to calculate my ROI on this 2 stage pump replacement. The main pump is easier. 7723 kWh/yr = $945/yr in electricity. With VS, I could reduce this to around $357/yr. But the current 2 speed pump? The calculation for VS pump from this site is 1 KWH (avg for VS pumps) and my current usage is .805kW. So, 7051 kWh/yr. So other than swimming, all this 2nd pump has to do is keep a very low flow of water circulating back into the pool from the basin….and cleaning the water. But with a DE filter on the main system, I think I have my filtration covered. I will say that my annual cleaning of the 2 DE’s shows the catch basin much more dirty. Thanks for any advice on the VS pump recommendation. I should also note that I have a Jandy One Touch RS and iAqualink controller.

    Reply
  56. 2 brothers pool service Avatar
    2 brothers pool service

    I own a pool service in all these people try to sell you a dual speed pump if you live in Florida you put a dual speed pump where it run slower you’re not going to get enough flow through your chlorinate or the keep your pool from not turning green and hot Florida now you’re spending money on a timer the pump more expensive it’s not worth going with the dual speed just go with the higher horsepower so it pumps enough water to your chlorinated to keep that pool nice and nice and blue and no hassles no headaches
    If you have waterfalls a hot tub and things like that in your pool then you use a dual speed if not single speed trust me

    Reply
  57. Jim Avatar
    Jim

    Matthew,

    Thank you for your many insights to pool pumps. I am in process of replacing all my mechanicals for my pool. One item I am considering is a variable speed pump. The added cost I have to factor in though is running a 220V line to the pump. Currently 110V is powering all the mechanicals. I’d love to do the variable speed pump but when factoring in $1000-$1500 to run the power and breakers, it’s a hard nut to swallow.

    Current set up:

    24,000 gallon in ground. 1 HP single speed pump. Sand filter. 250,000 BTU heater.

    Proposed:

    1.5 variable speed pump. DE filter. 250,000 filter. Convert to salt generator system.

    Thoughts please?

    Jim

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      First, $1000 seems really steep to install a 220-volt line. A couple hundred bucks to install a couple of lines for the pump, SWG, and heater seems more reasonable. I would try to get a new estimate form a different company.

      Not knowing your utility costs, pump schedule/ chlorine demand makes giving you an answer on this kind of a guess on my part. But the stuff you have picked out should work well together without much issue. The upfront cost will be high but the longterm should see you save on energy and replacement motors.

      Reply
  58. Jim Avatar
    Jim

    Sorry. I should have added I live in northern Ohio and our pool is open from mid May to the first of October.

    Reply
  59. john g Avatar
    john g

    Question? What is the easiest way to tell or determine if a pool/spa pump motor is a dual speed?

    thx

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      Look on the motor label for the rating that says RPM. If the RPM shows 3450/1725 then it is a dual speed. If the rating only says 3450 then you have a single speed.

      Reply
  60. lynh Avatar
    lynh

    I want to replace Pentair Pinnacle 3/4HP with a 2-speed motor to save energy. Which motor would be perfectly fit for it? Thanks

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      What is the part, catalog, or model number from the motor label?

      If you do not have the above, what is the Service Factor (SF) and Amps?

      Reply
  61. RThrasher Avatar
    RThrasher

    I need to replace my Hayward pump. It is model SP2607x10. I need the entire pump/motor assembly. Which dual speed pump is right for me

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      The dual speed replacement is the SP2607X102S

      Reply
  62. E. Wallace Avatar
    E. Wallace

    Hi Mathew. We’re buildind a new fiberglass pool 11x 22 feet in our backyard and added a pentair water bowl feature. Should we go for a dual speed or a variable pump? Or is the single pump enough? We live in Las Vegas, Nevada.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      The magic bowl appears to be a waterfall just in a different configuration. All the things mentioned in the article that you need to consider still apply to your application, regardless of the magic bowl.

      Other questions you need to answer. Do you plan to run the waterfall all the time? Or do you plan to have a way to shut off the waterfall either with valves, automation, or if you want to use lower RPM speeds on a multi-speed pump? Does your area require dual or variable speed pumps for new installations? For the last one you need to contact local utility companies.

      Reply
  63. John Avatar
    John

    I have a 40,000 gallon pool with an attached spa in South Louisiana with a 2.0 HP single speed pump. Would it make sense to switch to a variable speed pump? We usually run the pump 8-12 hours a day depending on the time of the year.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      How much you save and how long it would take to recoup the cost depends on the cost of utility in your area and if rebates are available for the purchase of a new pump. But generally, a variable speed pump can save you a sizeable portion on your power bills even in small pool applications.

      Reply
  64. Cheryl Avatar
    Cheryl

    We have a new 11,000 gallon pool with a pentair superflo vs. what rpm should this be set at? The pool company set the perimeters and I was wondering if they did it properly? Our pump sounds so loud.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      As stated in quite a few of my comments above, setting the RPM for your pool pump depends on the pool size, feet of head, pump model, and chlorine demand.

      For the short version since it is already installed, try lowering the RPMs by 300 – 500 RPMs and see if it affects the water quality. If not, lower it some more. If your water quality is affected try to find the middle ground between original and your adjusted setting.

      Reply
  65. Bruce Avatar
    Bruce

    Since the Variable speed pumps use a TEFC motor, does this mean they can essentially cavitate and run dry without overheating? If not how long can the motor be run dry before damage occurs?

    Reply
  66. Ty Emanuel Avatar
    Ty Emanuel

    I can understand that a VFD or 2-speed pump might lower costs, but I don’t understand how. If it isn’t doing anything other than turning over the water in the pool, unless there are time-of-day electric rate differentials, wouldn’t it be just as efficient to use a smaller pump and run it at a constant rate than to use a VFD? (Our vacuum runs on a separate pump.) Except to take advantage of a time-of-day rate differential, when would the pump need to run at higher or lower rates? I’m interested in some savings, but I’m not sure I can justify it, or even figure out how to calculate it.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      The ability to avoid peak hour price surges is a perk; but also remember, lowering a motor’s RPM also decreases energy usage. We cover this subject and the Law of Affinity in the section titled “Why do dual speed and variable speed pumps cost less to operate?” Cutting a motor’s RPMs by 50% lowers the energy use by around 75% or more.

      If you decide to go with a lower HP single speed pump, then you’ll still be pulling more amps than if you had gone with the larger dual speed, and run it at the lower setting.

      Reply
  67. Joe Avatar
    Joe

    How would a variable speed pump help if my single speed pump can barely push an adequate volume of water through 3 water features?

    Reply
  68. AboveGrounder Avatar
    AboveGrounder

    First, thanks for all the info! I am installing a 24′ round above ground pool. They have specified a Hayward SP1580 pump which will be mounted below the water level. I am getting a robotic dolphin cleaner which runs on electric, not water flow. I live in PA and my electricity rate is about $0.09/kW.. Are there any benefits to having a VS or DS pump installed?

    Reply
  69. Joe B Avatar
    Joe B

    Looking for recommendation to replace Hayward Pool Pump model SP3020EEAZ. Pool holds 11,190 gallons and there is also an inground spa/hot tub. Pump is not energy efficient for AZ.

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      A suitable replacement would be the PureLine Prime 2.7 VS. The pump motor can be throttled to fit your needs to maximize energy savings.

      Reply
      1. Joe B Avatar
        Joe B

        Would this move enough water with the spa and heater? Would this require replumbing or be a “drop-in? Called the support number and they suggested the only pump you carry that would be a suitable replacement was the Hayward Tri Star VS. Would like to try the PureLine if it is indeed applicable.

        Reply
        1. Matthew Simmons Avatar
          Matthew Simmons

          It will require some replumbing, nothing is going to be an exact drop-in unless it is another Hayward Super II. The TriStar VS would give more flow than the Prime but with the size of your pool being only 11k gallons, you should be able to use the Prime without issue.

          Reply
  70. What's In The Energy Efficiency Kit? | We Show You!

    […] The Variable Speed Pool Pump delivers you the best and most efficient option for your pool. We will pay for the hefty upfront costs in order to help save you more money later on. You can find out more about the products we use and how the variable speed pool pump works here. […]

    Reply
  71. Warren Avatar
    Warren

    Need some advice on replacing pool pump. Live in MIami, 10,500 gal. 2″skimmer 2″ vacuum 1 1/2 return. Want to get variable speed, energy efficient and QUIET. backyard is small and pump is close to pool Would optimally like something that could be “smart” and operated remotely so i can turn on heat when not at home. may add spa in future. Is intelliflo 011018 too much pump or would i just run it at lower setting? Anything else you recommend?? THanks!

    Reply
  72. Mike Chandler Avatar
    Mike Chandler

    These 4 years of interesting comments never mention using a flow meter to match gallons per minute to pool size. Make allowance for the gradually declining filter flow rate to backwash level and this GPM applied to your electric company’s lower tariff hours will indicate the running time required for most economical operation …

    Reply
  73. Peter Avatar
    Peter

    With the 3hp VS pump, do I still need my sweep pump, or will the sweep work when VS is at full hp?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      If you have a pressure-side cleaner like a Polaris or a Letro that require a booster pump, then you will still need that booster pump.

      Reply
  74. Tracy M Avatar
    Tracy M

    Hi! We were recommended to go with a variable speed pump. Currently with our filter pump running, the water from the spa overflows into the pool creating a waterfall type feature. We are concerned that with the variable speed the water won’t flow as heavily into the pool and just trickle over. Valid concern? Or what other details do we need to know?

    Reply
  75. JC Avatar
    JC

    Matthew, does the polaris booster pump work on a low speed dual pump or low rpm setting on a variable pump?

    Reply
    1. Matthew Simmons Avatar
      Matthew Simmons

      A Polaris Boster Pump – PB460 can be used in series if the dual speed pump is on low. Regarding the variable speed, anything below 1700 RPM is going to be a “test and see” situation.

      Reply
  76. Donald Metzger Avatar
    Donald Metzger

    I currently have a Pentair Whisperflo WF-28, 2HP. It burned out a motor about three years ago, and now is getting ready to burn out a replacement motor. I highly suspect the motor is too much for the fairly small sized pool (about 8000 gal). So I am thinking of going the rebuild route with a Pentair WFDS-4 1hp, 2 speed pump motor (we live in S. Florida, and have quite a few electrical storms, and a lot of power outages, so I’m reluctant to go with the VS motor because of the additional electronics required). I believe that most of the wet parts are interchangeable, but I know some may not be, particularly the impeller. For a rebuild, what parts would you recommend replacing.

    Reply
  77. Avatar
    Anonymous

    Great write-up, It is my understanding that my 8.4k gallon pool is too small to reap the benefits of a VS pump? I have 1 1/2″ pipes. I am in Florida and run the pump 365 days a year. I have been advised to buy a 2-speed pump to get the most savings on my energy, agree?

    Reply
  78. Sharon Avatar
    Sharon

    I have approximately a 30,000 gallon Inground pool. We live in Missouri and usually open our pool mid to late May and shut it down by mid September. Our motor stopped pumping today so we are needing to make a fast decision on type of replacement motor to purchase. This will probably be a diy since we live in a rural area and the local pool company has a waiting list for any type of service.

    Reply
  79. Mark Newton Avatar
    Mark Newton

    Thanks for the great blog!
    I live in Southern California and am on a tiered rate schedule. I have a 20,000 gallon pool with one skimmer and a small built in spa. I have 1 1/2” pipe and a Pentair 4060 58 sq. ft. DG filter. The current pump is a Hayward SP2607X102S. It has a replacement dual speed motor from Century 1.0/.12 hp with the toggle switch on the back. (Century-AO Smith Part No. 8-177060-05) It is controlled by a timer box. I am looking at switching out the motor for a VS or another dual speed and have a couple of questions.
    1. The current motor seems a bit undersized for the spa, what is the harm other than expense and running costs of going up to a 1.5+HP pump?
    2. We generally run the motor on low during off peak, but have to run the motor on high for some of the time in the summer to keep the water quality high enough, so I’m thinking that a higher HP low speed would also be helpful.
    3.Do the VS motors have built in controls so that I will need to bypass the timer box, or do I just always keep it switched on at the timer box?
    4. When I use the spa and need to adjust the motor, how straightforward is the VS adjustment compared to a toggle switch?
    5. Is there a VS motor you suggest for me?
    6. If I want to go with another dual speed, is there one that you suggest that has a toggle switch on the motor?

    Reply
  80. Rich W. Avatar
    Rich W.

    This article was thorough, clear, direct and very helpful, Thank you.

    Reply

Leave a Reply

Your email address will not be published. Required fields are marked *
