Hayward Pool Pump Variable Speed Compatibility Chart

This article provides cross-reference charts for matching a variable speed motor to your Hayward pool pump. Converting your single or dual speed Hayward pump to a variable speed motor not only makes sense, but it will also save you cents. Variable speed motors are super-efficient and incredibly durable machines that turn your old single speed into cutting-edge technology.

Reasons to upgrade your pump to Variable Speed.

VS motors can save homeowners up to 80% on their pump operating costs
A permanent magnet drivetrain increases the motor’s energy efficiency and durability but reduces heat and friction
Totally Enclosed, Fan Cooled (TEFC) design protects the motor from dust, rain, and wildlife from damaging components
Runs super quiet

Hayward Super Pump Uprated Single Speed

Part #	MFG Code	Description
W3SP2600X5	SP2600X5	Hayward Super Pump .5 HP Single Speed
W3SP2605X7	SP2605X7	Hayward Super Pump .75 HP Single Speed
W3SP2607X10	SP2607X10	Hayward Super Pump 1 HP Single Speed
W3SP2610X15	SP2610X15	Hayward Super Pump 1.5 HP Single Speed
W3SP2615X20	SP2615X20	Hayward Super Pump 2 HP Single Speed
W3SP2621X25	SP2621X25	Hayward Super Pump 2.5 HP Single Speed
The necessary gasket kit for the Hayward Super Pump is the GOKIT3 or the GOKIT3SALT

Hayward Super Pump Uprated Dual Speed

Part #	MFG Code	Description
W3SP2607X102S	SP2607X102S	Hayward Super Pump 1.0 HP Pool Pump – Two Speed
W3SP2610X152S	SP2610X152S	Hayward Super Pump 1.5 HP Pool Pump – Two Speed
W3SP2615X202S	SP2615X202S	Hayward Super Pump 2.0 HP Pool Pump – Two Speed
The necessary gasket kit for the Hayward Super Pump is the GOKIT3 or the GOKIT3SALT

Hayward Super II Uprated Single Speed

Part #	MFG Code	Description
SP3005X7AZ	SP3005X7AZ	Hayward Super II 0.75 HP Pool Pump – Max Rate, Single Speed
W3SP3007X10AZ	SP3007X10AZ	Hayward Super II 1.0 HP Pool Pump – Max Rate, Single Speed
W3SP3010X15AZ	SP3010X15AZ	Hayward Super II 1.5 HP Pool Pump – Max Rate, Single Speed
W3SP3015X20AZ	SP3015X20AZ	Hayward Super II 2.0 HP Pool Pump – Max Rate, Single Speed
W3SP3025X30AZ	SP3025X30AZ	Hayward Super II 3 HP Pool Pump – Max Rate, Single Speed
The necessary gasket kit for the Hayward Super II is the GOKIT2 or the GOKIT2SALT

Hayward Super II Uprated Dual Speed

Part #	MFG Code	Description
W3SP3007X10AZ2	SP3007X102AZ	Hayward Super II 1.0 HP Pool Pump – Max Rate, Two Speed
W3SP3010X152AZ	SP3010X152AZ	Hayward Super II 1.5 HP Pool Pump – Max Rate, Two Speed
W3SP3015X202AZ	SP3015X202AZ	Hayward Super II 2.0 HP Pool Pump – Max Rate, Two Speed
W3SP3020X252AZ	SP3020X252AZ	Hayward Super II 2.5 HP Pool Pump – Max Rate, Two Speed
The necessary gasket kit for the Hayward Super II is the GOKIT2 or the GOKIT2SALT

Hayward Super II Full Rate Single Speed

Part #	MFG Code	Description
SP3007EECA	SP3007EECA	Hayward Super II EE .75 HP Pool Pump – Full Rate, Single Speed
SP3010EEAZ	SP3010EEAZ	Hayward Super II EE 1 HP Pool Pump – Full Rate, Single Speed
SP3015EEAZ	SP3015EEAZ	Hayward Super II EE 1.5 HP Pool Pump – Full Rate, Single Speed
SP3020EEAZ	SP3020EEAZ	Hayward Super II EE 2 HP Pool Pump – Full Rate, Single Speed
SP3025EEAZ	SP3025EEAZ	Hayward Super II EE 3 HP Pool Pump – Full Rate, Single Speed
The necessary gasket kit for the Hayward Super II is the GOKIT2 or the GOKIT2SALT

Hayward TriStar Max Rate Single Speed

Part #	MFG Code	Description
SP3207X10	SP3207X10	Hayward TriStar 1.0 HP Pool Pump – Max Rate, Single Speed
SP3210X15	SP3210X15	Hayward TriStar 1.5 HP Pool Pump – Max Rate, Single Speed
SP3215X20	SP3215X20	Hayward TriStar 2.0 HP Pool Pump – Max Rate, Single Speed
SP3220X25	SP3220X25	Hayward TriStar 2.5 HP Pool Pump – Max Rate, Single Speed
SP3225X30	SP3225X30	Hayward TriStar 3.0 HP Pool Pump – Max Rate, Single Speed
The necessary gasket kit for the Hayward TriStar SP3200X Series Pump is the GOKIT81

Hayward TriStar Full Rate Single Speed

Part #	MFG Code	Description
SP3205EE	SP3205EE	Hayward TriStar 0.5 HP Pool Pump – Full Rate, Single Speed
W3SP3207EE	SP3207EE	Hayward TriStar 0.75 HP Pool Pump – Full Rate, Single Speed
W3SP3210EE	SP3210EE	Hayward TriStar 1.0 HP Pool Pump – Full Rate, Single Speed
W3SP3215EE	SP3215EE	Hayward TriStar 1.5 HP Pool Pump – Full Rate, Single Speed
W3SP3220EE	SP3220EE	Hayward TriStar 2.0 HP Pool Pump – Full Rate, Single Speed
SP3230EE	SP3230EE	Hayward TriStar 3.0 HP Pool Pump – Full Rate, Single Speed
SP3250EE	SP3250EE	Hayward TriStar 5.0 HP Pool Pump – Full Rate, Single Speed
The necessary gasket kit for the Hayward TriStar SP3200X Series Pump is the GOKIT81.

Hayward TriStar Full Rate Dual Speed

Part #	MFG Code	Description
SP32102EE	SP32102EE	Hayward TriStar 1.0 HP Pool Pump – Full Rate, Two Speed
SP32152EE	SP32152EE	Hayward TriStar 1.5 HP Pool Pump – Full Rate, Two Speed
SP32202EE	SP32202EE	Hayward TriStar 2.0 HP Pool Pump – Full Rate, Two Speed
The necessary gasket kit for the Hayward TriStar SP3200X Series Pump is the GOKIT81.

Hayward TriStar Max Rate Dual Speed

Part #	MFG Code	Description
SP3210X152	SP3210X152	Hayward TriStar 1.5 HP Pool Pump – Max Rate, Two Speed
SP3215X202	SP3215X202	Hayward TriStar 2.0 HP Pool Pump – Max Rate, Two Speed
SP3220X252	SP3220X252	Hayward TriStar 2.5 HP Pool Pump – Max Rate, Two Speed
The necessary gasket kit for the Hayward TriStar SP3200X Series Pump is the GOKIT81.

Hayward MaxFlo Max Rate Single Speed

Part #	MFG Code	Description
SP2805X7	SP2805X7	Hayward MaxFlo 75 HP Pool Pump – Single Speed
SP2807X10	SP2807X10	Hayward MaxFlo 1 HP Pool Pump – Single Speed
SP2810X15	SP2810X15	Hayward MaxFlo 1.5 HP Pool Pump – Single Speed
SP2815X20	SP2815X20	Hayward MaxFlo 2 HP Pool Pump – Single Speed
The necessary gasket kit for the Hayward MaxFlo is the GOKIT1

Hayward MaxFlo Max Rate Dual Speed

Part #	MFG Code	Description	ECM16CU	ECM16CU
SP2810X152	SP2810X152	Hayward MaxFlo 1.5 HP Pool Pump – Two Speed
The necessary gasket kit for the Hayward MaxFlo is the GOKIT1

Hayward MaxFlo XL Max Rate Single Speed

Part #	MFG Code	Description
SP2305X7	SP2305X7	Hayward MaxFlo XL 0.75 HP Pool Pump – Single Speed
SP2307X10	SP2307X10	Hayward MaxFlo XL 1.0 HP Pool Pump – Single Speed
SP2310X15	SP2310X15	Hayward MaxFlo XL 1.5 HP Pool Pump – Single Speed
SP2315X20	SP2315X20	Hayward MaxFlo XL 2.0 HP Pool Pump – Single Speed
The necessary shaft seal to complete the motor installation is the SPX2700SA

Hayward MaxFlo XL Max Rate Dual Speed

Part #	MFG Code	Description
SP2307X102	SP2307X102	Hayward MaxFlo XL 1.0 HP Pool Pump – Two Speed
SP2310X152	SP2310X152	Hayward MaxFlo XL 1.5 HP Pool Pump – Two Speed
SP2315X202	SP2315X202	Hayward MaxFlo XL 2.0 HP Pool Pump – Two Speed
The necessary shaft seal to complete the motor installation is the SPX2700SA

Hayward NorthStar SP4000 Series Pump (2008-Current) Full Rate Single Speed

Part #	MFG Code	Description
SP4007	SP4007	Hayward NorthStar .75 HP Full Rated, Single Speed
SP4010	SP4010	Hayward NorthStar 1 HP Full Rated, Single Speed
SP4015	SP4015	Hayward NorthStar 1.5 HP Full Rated, Single Speed
SP4020	SP4020	Hayward NorthStar 2 HP Full Rated, Single Speed
SP4030	SP4030	Hayward NorthStar 3 HP Full Rated, Single Speed
The necessary shaft seal to complete the motor installation on the Hayward NorthStar (2008-Current) is the PS-3890 or the PS-4280

Hayward NorthStar SP4000 Series Pump (2008-Current) Max Rate Single Speed

Part #	MFG Code	Description
SP4007X10	SP4007X10	Hayward NorthStar 1 HP Max Rated, Single Speed
SP4010X15	SP4010X15	Hayward NorthStar 1.5 HP Max Rated, Single Speed
SP4015X20	SP4015X20	Hayward NorthStar 2 HP Max Rated, Single Speed
SP4020X25	SP4020X25	Hayward NorthStar 2.5 HP Max Rated, Single Speed
SP4025X30	SP4025X30	Hayward NorthStar 3 HP Max Rated, Single Speed
The necessary shaft seal to complete the motor installation on the Hayward NorthStar (2008-Current) is the PS-3890 or the PS-4280

Hayward NorthStar SP4000 Series Pump (2008-Current) Max Rate Dual Speed

Part #	MFG Code	Description
SP4010X152	SP4010X152	Hayward NorthStar 1.5 HP Max Rated, Two Speed
SP4015X202	SP4015X202	Hayward NorthStar 2 HP Max Rated, Two Speed
SP4020X252	SP4020X252	Hayward NorthStar 2.5 HP Max Rated, Two Speed
The necessary shaft seal to complete the motor installation on the Hayward NorthStar (2008-Current) is the PS-3890 or the PS-4280

Hayward NorthStar SP4000 Series Pump (1998-2007) Full Rate Single Speed

Part #	MFG Code	Description
SP4007	SP4007	Hayward NorthStar .75 HP Full Rated, Single Speed
SP4010	SP4010	Hayward NorthStar 1 HP Full Rated, Single Speed
SP4015	SP4015	Hayward NorthStar 1.5 HP Full Rated, Single Speed
SP4020	SP4020	Hayward NorthStar 2 HP Full Rated, Single Speed
SP4030	SP4030	Hayward NorthStar 3 HP Full Rated, Single Speed
An impeller kit should be purchased to complete the motor installation, to ensure shaft seal and impeller compatibility. Find your kit here: Hayward NorthStar SP4000 Series Pump (1998-2007)

Hayward NorthStar SP4000 Series Pump (1998-2007) Max Rate Single Speed

Part #	MFG Code	Description
SP4007X10	SP4007X10	Hayward NorthStar 1 HP Max Rated, Single Speed
SP4010X15	SP4010X15	Hayward NorthStar 1.5 HP Max Rated, Single Speed
SP4015X20	SP4015X20	Hayward NorthStar 2 HP Max Rated, Single Speed
SP4020X25	SP4020X25	Hayward NorthStar 2.5 HP Max Rated, Single Speed
SP4025X30	SP4025X30	Hayward NorthStar 3 HP Max Rated, Single Speed
An impeller kit should be purchased to complete the motor installation, to ensure shaft seal and impeller compatibility. Find your kit here: Hayward NorthStar SP4000 Series Pump (1998-2007)

Hayward NorthStar SP4000 Series Pump (1998-2007) Max Rate Dual Speed

Part #	MFG Code	Description
SP4010X152	SP4010X152	Hayward NorthStar 1.5 HP Max Rated, Two Speed
SP4015X202	SP4015X202	Hayward NorthStar 2 HP Max Rated, Two Speed
SP4020X252	SP4020X252	Hayward NorthStar 2.5 HP Max Rated, Two Speed
An impeller kit should be purchased to complete the motor installation, to ensure shaft seal and impeller compatibility. Find your kit here: Hayward NorthStar SP4000 Series Pump (1998-2007)

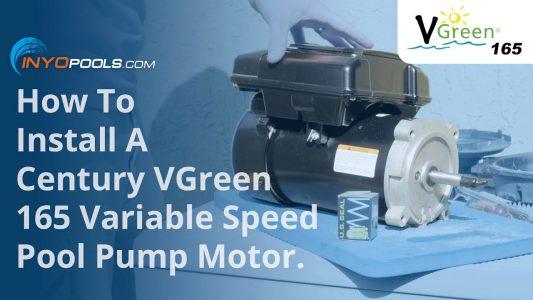

how-to-install-a-vgreen-165-motor - DIY Pool Resources - INYOPools.com

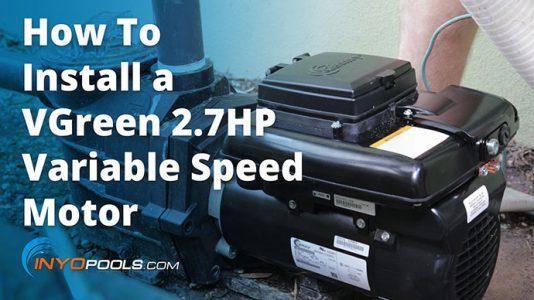

how-to-install-a-vgreen-27 - DIY Pool Resources - INYOPools.com

Matthew Simmons

Swimming pool expert at InyoPools and host of Poolside Chat, brings over a decade of experience in the pool industry.

See Full Bio

11 responses to “Hayward Pool Pump Variable Speed Compatibility Chart”

Bob Swango

October 11, 2022

I have installed , Hayward 1.85 THP Variable Speed Pump Family , Tri-Star 900 pool pump. Question : within the digital display window screen it shows clearly, The Day, The Time, RPM’s, and Watts. What does the Watts mean within the display screen ?

Example : Screen shows the following . Tuesday 3:45p
1800 rpm 266 watts
My e-mail bobswango@gmail.com
Please respond
Thank you, Bob

1. Matthew Simmons

  October 17, 2022

  It means it’s using 266 watts when operating at the set RPM. It is covered in the manual.

Chris Gamboa

October 18, 2022

Hi Matthew Simmons,

It looks like the ECM27CU is discontinued and not available. This would have been compatible with my Hayward NorthStar SP4020NS. I suppose my question is would the EVC225 be compatible? I have it in my cart along with the seal kit, don’t want to pull the trigger quite yet to make sure it’s compatible.

Thank you!

1. Matthew Simmons

  October 19, 2022

  The SP4020NS is a 2 HP full rated, it’s total HP is 2.7 THP; the EVC225 will not work with the OEM 2.5HP impeller. The impeller required to lower the pump to a usable 2HP, is the SPX4015CKIT; it is unfortunately discontinued.

Lesha

February 25, 2023

Have a Hayward max flo xl sp2307x10 will the Hayward power flo sp1580x15 work as a replacement?

1. Matthew Simmons

  February 27, 2023

  The Hayward MaxFlo SP2307X10 is a an inground pool and the Hayward PowerFlo LX SP1580X15 is for above ground pool pump: theSP1580X15 is not a compatible replacement for the SP2307X10.

  A suitable replacement for the SP2307X10 is the Hayward 1.0 HP Super II Pump, Inground Pool, Single Speed, 115-230 Volt – W3SP3007X10AZ

Joe

July 3, 2023

I have an HST225 single speed. Any help on what’s compatible in the variable speed retrofit?

1. Matthew Simmons

  July 11, 2023

  HST225 is a pump motor identifying number for the UST1202. The variable speed motor that’s compatible with the HST225 is the Century (A.O. Smith) V-Green EVO 2.25 HP Up Rate VS Motor, Round Flange 56J Frame, Variable Speed – Model EVC225

  We’d need to know the pump model to figure out the correct gaskets and other hardware.

  1. joe.ormsby@gmail.com

    July 23, 2023

    Hi Matthew. Unfortunately the serial number for my pump is no longer available. Is it possible that you could identify it through a couple of pictures, (links attached)? Any help would be appreciated!

    Joe
    https://drive.google.com/file/d/1I2VuALKAVXLsOJrLCoOVMEX_VsB5uHrt/view?usp=sharing
    https://drive.google.com/file/d/1I7BZFGPSEcFG9YkOX3HEfs_oaeJIu_fK/view?usp=sharing

Gary

November 17, 2023

What is the variable speed replacement pump for SP3010X15AZ

1. Matthew Simmons

  November 20, 2023

  The Hayward Super II SP3010X15AZ would need the Hayward Super II VS Motor Upgrade Kit – 1.65HP – MKIT2VS16
