Hayward Pool Pump Variable Speed Motor Upgrade Kits

Our new VS Upgrade Kits have made upgrading your Hayward pool pump with a variable-speed motor much simpler. Inyo’s VS Upgrade Kits include everything you need to make your old single or dual speed into a super-efficient, long-lasting variable speed pump. The kits include the Century EVO V-Green Variable Speed Motor and your specific pump’s gasket kit, including the heavy-duty saltwater shaft seal, gasket lubricant, assorted impeller, and diffuser(depending on pump model.)

Helpful Guides:

• Best Setup For Variable Speed Pool Pumps
• 5 Reasons To Get A Variable Speed Pool Pump Motor
• California’s New Variable Speed Pool Pump Law
• How Much Does My Pool Pump Cost to Run?

Click a Check Mark to View the Matching Kit

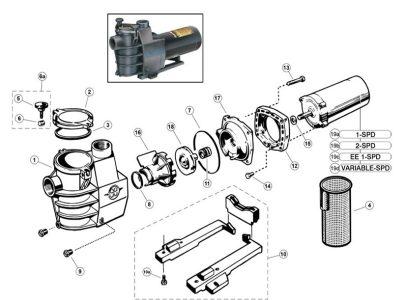

Hayward Super Pump Single Speed

Part #	MFG Code	Description	MKIT3VS16	MKIT3VS22
W3SP2600X5	SP2600X5	Hayward Super Pump .5 HP Single Speed
W3SP2605X7	SP2605X7	Hayward Super Pump .75 HP Single Speed
W3SP2607X10	SP2607X10	Hayward Super Pump 1 HP Single Speed
W3SP2610X15	SP2610X15	Hayward Super Pump 1.5 HP Single Speed
W3SP2615X20	SP2615X20	Hayward Super Pump 2 HP Single Speed
W3SP2621X25	SP2621X25	Hayward Super Pump 2.5 HP Single Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward Super Pump Dual Speed

Part #	MFG Code	Description	MKIT3VS16	MKIT3VS22
W3SP2607X102S	SP2607X102S	Hayward Super Pump 1.0 HP Pool Pump – Two Speed
W3SP2610X152S	SP2610X152S	Hayward Super Pump 1.5 HP Pool Pump – Two Speed
W3SP2615X202S	SP2615X202S	Hayward Super Pump 2.0 HP Pool Pump – Two Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate

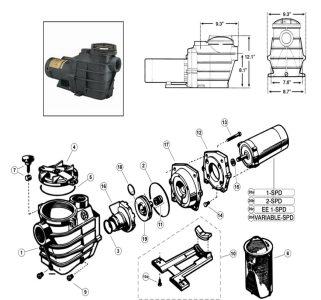

Hayward Super II Uprated Single Speed

Part #	MFG Code	Description	MKIT2VS16	MKIT2VS22
SP3005X7AZ	SP3005X7AZ	Hayward Super II 0.75 HP Pool Pump – Max Rate, Single Speed
W3SP3007X10AZ	SP3007X10AZ	Hayward Super II 1.0 HP Pool Pump – Max Rate, Single Speed
W3SP3010X15AZ	SP3010X15AZ	Hayward Super II 1.5 HP Pool Pump – Max Rate, Single Speed
W3SP3015X20AZ	SP3015X20AZ	Hayward Super II 2.0 HP Pool Pump – Max Rate, Single Speed
W3SP3025X30AZ	SP3025X30AZ	Hayward Super II 3 HP Pool Pump – Max Rate, Single Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward Super II Uprated Dual Speed

Part #	MFG Code	Description	MKIT2VS16	MKIT2VS22
W3SP3007X10AZ2	SP3007X102AZ	Hayward Super II 1.0 HP Pool Pump – Max Rate, Two Speed
W3SP3010X152AZ	SP3010X152AZ	Hayward Super II 1.5 HP Pool Pump – Max Rate, Two Speed
W3SP3015X202AZ	SP3015X202AZ	Hayward Super II 2.0 HP Pool Pump – Max Rate, Two Speed
W3SP3020X252AZ	SP3020X252AZ	Hayward Super II 2.5 HP Pool Pump – Max Rate, Two Speed
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward Super II EE Full Rate Single Speed

Part #	MFG Code	Description	MKIT2VS16	MKIT2VS22
SP3007EECA	SP3007EECA	Hayward Super II EE .75 HP Pool Pump – Full Rate, Single Speed
SP3010EEAZ	SP3010EEAZ	Hayward Super II EE 1 HP Pool Pump – Full Rate, Single Speed
SP3015EEAZ	SP3015EEAZ	Hayward Super II EE 1.5 HP Pool Pump – Full Rate, Single Speed
SP3020EEAZ	SP3020EEAZ	Hayward Super II EE 2 HP Pool Pump – Full Rate, Single Speed		*
SP3025EEAZ	SP3025EEAZ	Hayward Super II EE 3 HP Pool Pump – Full Rate, Single Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward MaxFlo Uprated Dual Speed

Part #	MFG Code	Description	MKIT1VS16	MKIT1VS22
SP2810X152	SP2810X152	Hayward MaxFlo 1.5 HP Pool Pump – Two Speed	*
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward MaxFlo Uprated Single Speed

Part #	MFG Code	Description	MKIT1VS16	MKIT1VS22
SP2805X7	SP2805X7	Hayward MaxFlo 75 HP Pool Pump – Single Speed
SP2807X10	SP2807X10	Hayward MaxFlo 1 HP Pool Pump – Single Speed
SP2810X15	SP2810X15	Hayward MaxFlo 1.5 HP Pool Pump – Single Speed
SP2815X20	SP2815X20	Hayward MaxFlo 2 HP Pool Pump – Single Speed
* Lower Total Horsepower Reduces Pump Flow Rate

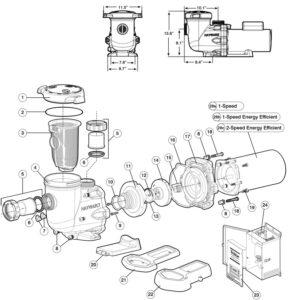

Hayward TriStar Uprated Dual Speed

Part #	MFG Code	Description	MKIT81VS16	MKIT81VS22
SP3210X152	SP3210X152	Hayward TriStar 1.5 HP Pool Pump – Max Rate, Two Speed
SP3215X202	SP3215X202	Hayward TriStar 2.0 HP Pool Pump – Max Rate, Two Speed
SP3220X252	SP3220X252	Hayward TriStar 2.5 HP Pool Pump – Max Rate, Two Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward TriStar Full Rated Dual Speed

Part #	MFG Code	Description	MKIT81VS16	MKIT81VS22
SP32102EE	SP32102EE	Hayward TriStar 1.0 HP Pool Pump – Full Rate, Two Speed
SP32152EE	SP32152EE	Hayward TriStar 1.5 HP Pool Pump – Full Rate, Two Speed
SP32202EE	SP32202EE	Hayward TriStar 2.0 HP Pool Pump – Full Rate, Two Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward TriStar Uprated Single Speed

Part #	MFG Code	Description	MKIT81VS16	MKIT81VS22
SP3207X10	SP3207X10	Hayward TriStar 1.0 HP Pool Pump – Max Rate, Single Speed
SP3210X15	SP3210X15	Hayward TriStar 1.5 HP Pool Pump – Max Rate, Single Speed
SP3215X20	SP3215X20	Hayward TriStar 2.0 HP Pool Pump – Max Rate, Single Speed
SP3220X25	SP3220X25	Hayward TriStar 2.5 HP Pool Pump – Max Rate, Single Speed		*
SP3225X30	SP3225X30	Hayward TriStar 3.0 HP Pool Pump – Max Rate, Single Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate

Hayward TriStar Full Rated Single Speed

Part #	MFG Code	Description	MKIT81VS16	MKIT81VS22
SP3205EE	SP3205EE	Hayward TriStar 0.5 HP Pool Pump – Full Rate, Single Speed
W3SP3207EE	SP3207EE	Hayward TriStar 0.75 HP Pool Pump – Full Rate, Single Speed
W3SP3210EE	SP3210EE	Hayward TriStar 1.0 HP Pool Pump – Full Rate, Single Speed
W3SP3215EE	SP3215EE	Hayward TriStar 1.5 HP Pool Pump – Full Rate, Single Speed
W3SP3220EE	SP3220EE	Hayward TriStar 2.0 HP Pool Pump – Full Rate, Single Speed		*
SP3230EE	SP3230EE	Hayward TriStar 3.0 HP Pool Pump – Full Rate, Single Speed		*
SP3250EE	SP3250EE	Hayward TriStar 5.0 HP Pool Pump – Full Rate, Single Speed		*
* Lower Total Horsepower Reduces Pump Flow Rate
